PIV Investigation of Helicopter Rotor Hub and Cowling Wake Mitigation

Abstract:
Helicopter tail shake constitutes a significant limitation to both passenger comfort and aircraft stability. Under powered descent conditions, elevated Angle of Attack (AoA) cause flow separation around the rotor hub and engine cowling, leading to the development of an unsteady wake dominated by large-scale turbulent structures. To support the helicopter tail shake phenomenon investigation, a dedicated Particle Image Velocimetry (PIV) experimental setup was designed in this work, together with four aerodynamic devices aimed at mitigating tail shake. These components were then tested through a wind tunnel campaign with the PIV setup. The proposed aerodynamic components were conceived to either deflect the hub wake away from the tail empennages or to decrease the Turbulent Kinetic Energy (TKE) within the wake. To achieve these objectives, a dorsal fin, a horse-collar, and two spoiler configurations inspired by automotive applications were designed and experimentally evaluated. The devices were tested both as standalone solutions and in combined arrangements on a scaled helicopter wind tunnel model featuring a rotating hub and blade shanks. The vertical velocity component, was used as an indicator of wake deflection, and the Turbulent Kinetic Energy was used as an indicator of wake turbulence. The Horse Collar and the Large Spoiler showed a reduction in both indicators suggesting possible tail shake mitigating capabilities, and additional improvements were achieved when the two devices were deployed in combination.

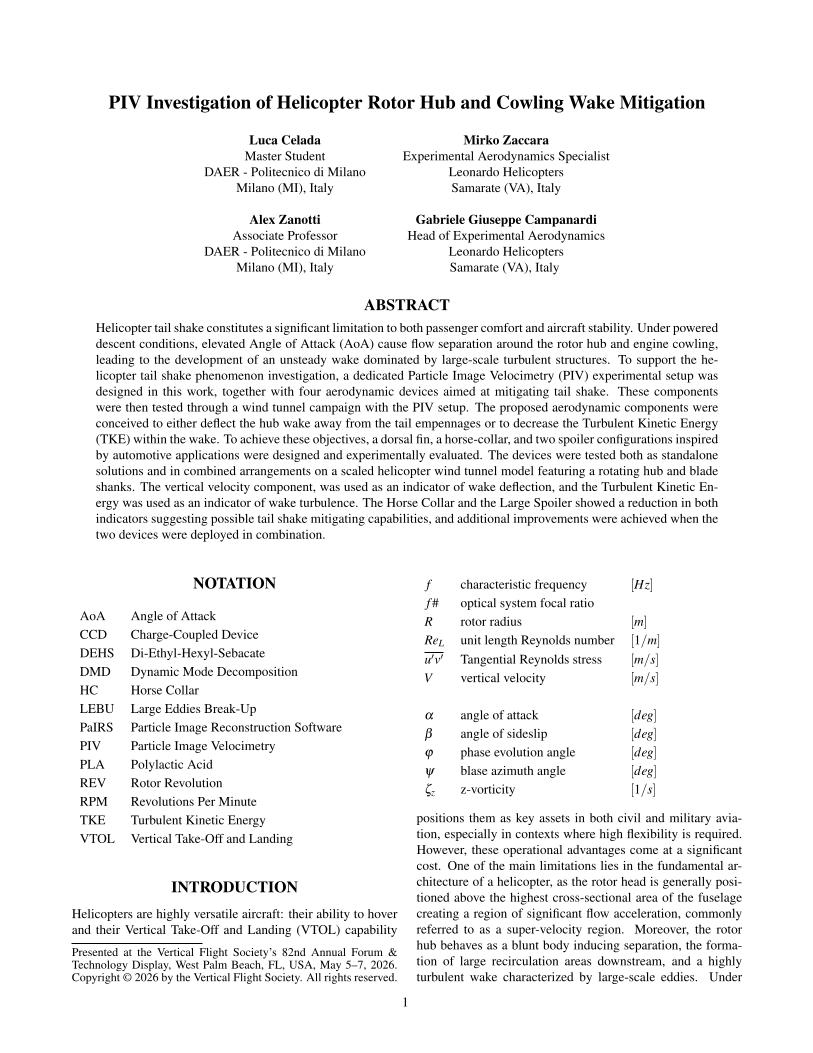

Did you attend Forum 82? Click the preview below to access the full paper.
