Hingeless Rotor Whirl Flutter Stability Predictions for TRAST

Abstract:
The TiltRotor Aeroelastic Stability Testbed (TRAST) was developed to experimentally investigate whirl-flutter stability of tiltrotor aircraft. Previous wind-tunnel testing focused on configurations representative of current generation tiltrotors utilizing gimballed rotor hubs. The TRAST platform was also designed to support a hingeless rotor system to investigate whirl-flutter mechanisms representative of stiff proprotor configurations. This paper presents analytical whirl-flutter predictions for a hingeless rotor configuration of the TRAST model. Structural mode shapes derived from a NASTRAN finite-element model are combined with comprehensive aeroelastic analyses in CAMRAD II and RCAS. The results show that the dominant whirl-flutter mechanism differs from the gimballed configuration, with instability occurring through the wing in-plane mode rather than the wing vertical bending mode. Parametric studies examining rotor speed, pitch-spring stiffness, rotor flexibility, and diaphragm spring stiffness are conducted to evaluate the sensitivity of the predicted stability boundary. Results indicate that the hingeless configuration is significantly more stable than the equivalent gimballed configuration and exhibits different trends with rotor speed and structural stiffness. These predictions help identify configurations of interest for future wind-tunnel testing and provide insight into whirl-flutter mechanisms for hingeless tiltrotor systems.

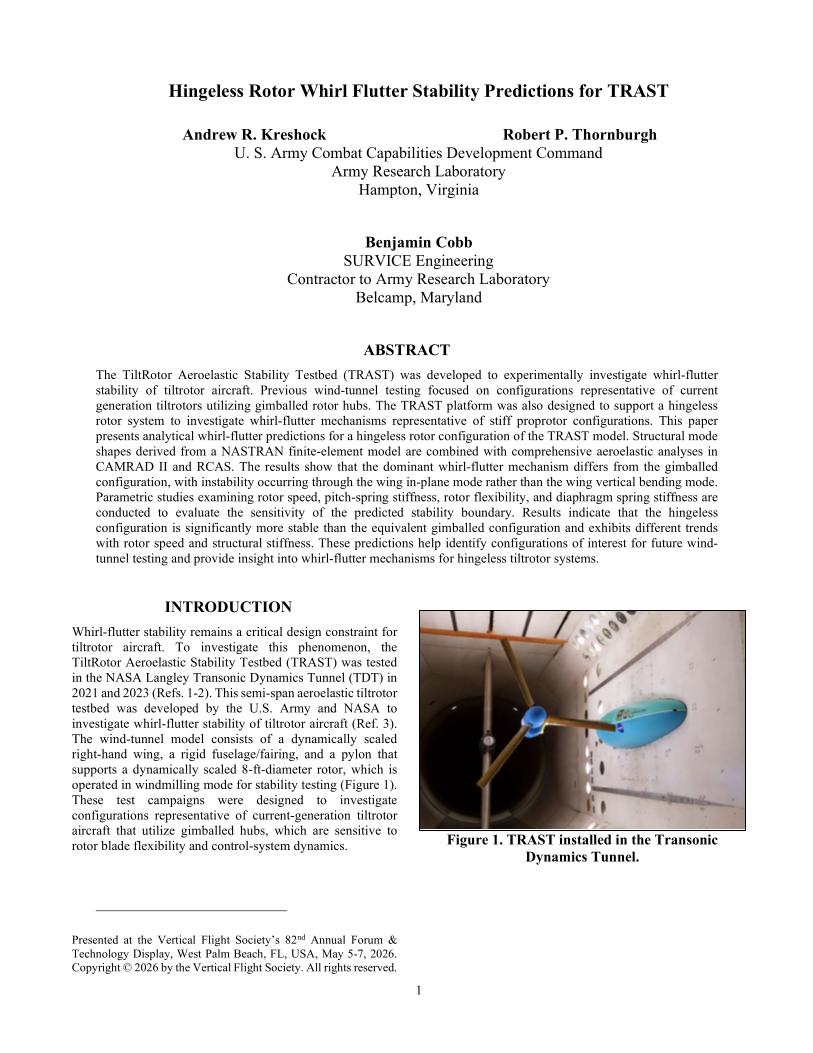

Did you attend Forum 82? Click the preview below to access the full paper.
