Synthesis of Whirl Flutter Predictions from Multiple Independent Analysis Solvers

Abstract:

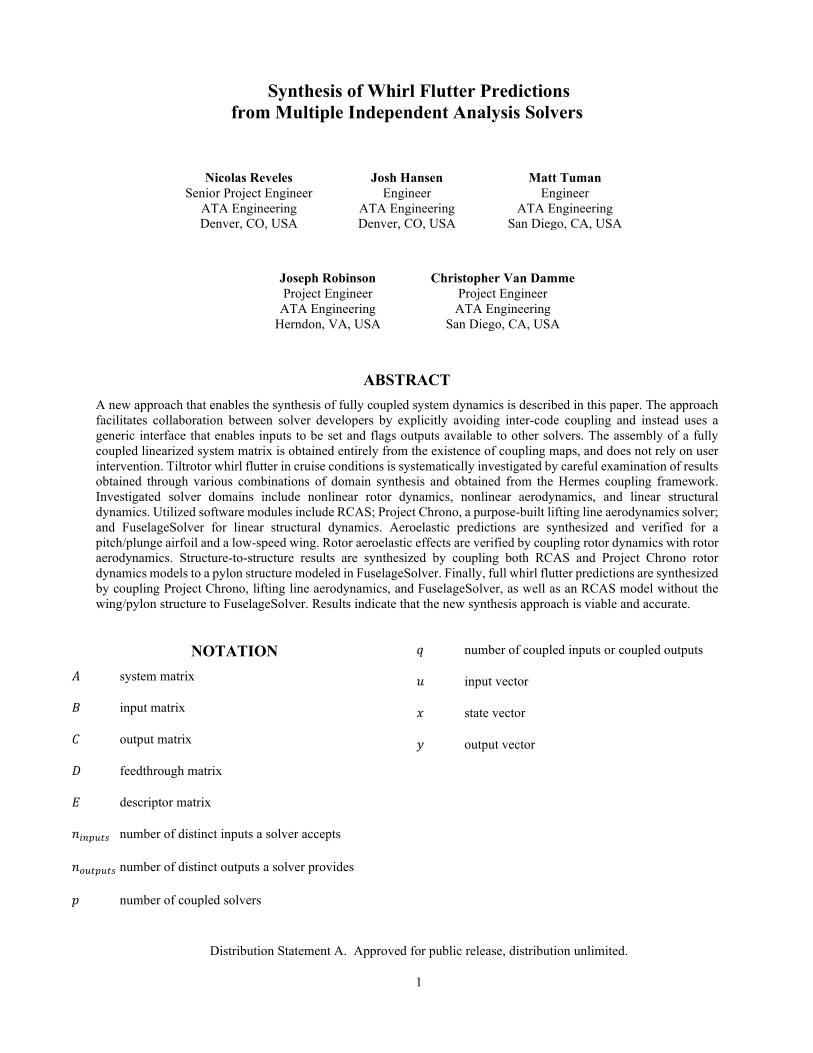

A new approach that enables the synthesis of fully coupled system dynamics is described in this paper. The approach facilitates collaboration between solver developers by explicitly avoiding inter-code coupling and instead uses a generic interface that enables inputs to be set and flags outputs available to other solvers. The assembly of a fully coupled linearized system matrix is obtained entirely from the existence of coupling maps, and does not rely on user intervention. Tiltrotor whirl flutter in cruise conditions is systematically investigated by careful examination of results obtained through various combinations of domain synthesis and obtained from the Hermes coupling framework. Investigated solver domains include nonlinear rotor dynamics, nonlinear aerodynamics, and linear structural dynamics. Utilized software modules include RCAS; Project Chrono, a purpose-built lifting line aerodynamics solver; and FuselageSolver for linear structural dynamics. Aeroelastic predictions are synthesized and verified for a pitch/plunge airfoil and a low-speed wing. Rotor aeroelastic effects are verified by coupling rotor dynamics with rotor aerodynamics. Structure-to-structure results are synthesized by coupling both RCAS and Project Chrono rotor dynamics models to a pylon structure modeled in FuselageSolver. Finally, full whirl flutter predictions are synthesized by coupling Project Chrono, lifting line aerodynamics, and FuselageSolver, as well as an RCAS model without the wing/pylon structure to FuselageSolver. Results indicate that the new synthesis approach is viable and accurate.
