Forward Flight Dynamic Inflow Model Identification from Experimental Wake Measurements

Abstract:
Wake measurements were performed on a 2-m diameter rotor in forward flight at an advance ratio of 0.2 undergoing sinusoidal collective and cyclic inputs using 2D-3C phase-resolved PIV. Input frequencies of 0.05/rev, 0.1/rev, 0.2/rev, and 0.4/rev were tested. The goal of this study was to characterize the time-varying rotor wake and extract Pitt-Peters dynamic inflow model parameters for the lateral cyclic inflow state. In both input cases, the effects of the pitch inputs manifested as modulation of the local upwash and downwash of the trailing tip vortices near the tip path plane. It was found that additional azimuthal measurements are necessary to improve the extracted value of the steady Pitt-Peters term. However, the extracted mass term was within 12% of the Pitt-Peters value, demonstrating the ability of the presented analysis to resolve the dynamics of the wake with a limited number of azimuthal measurements.

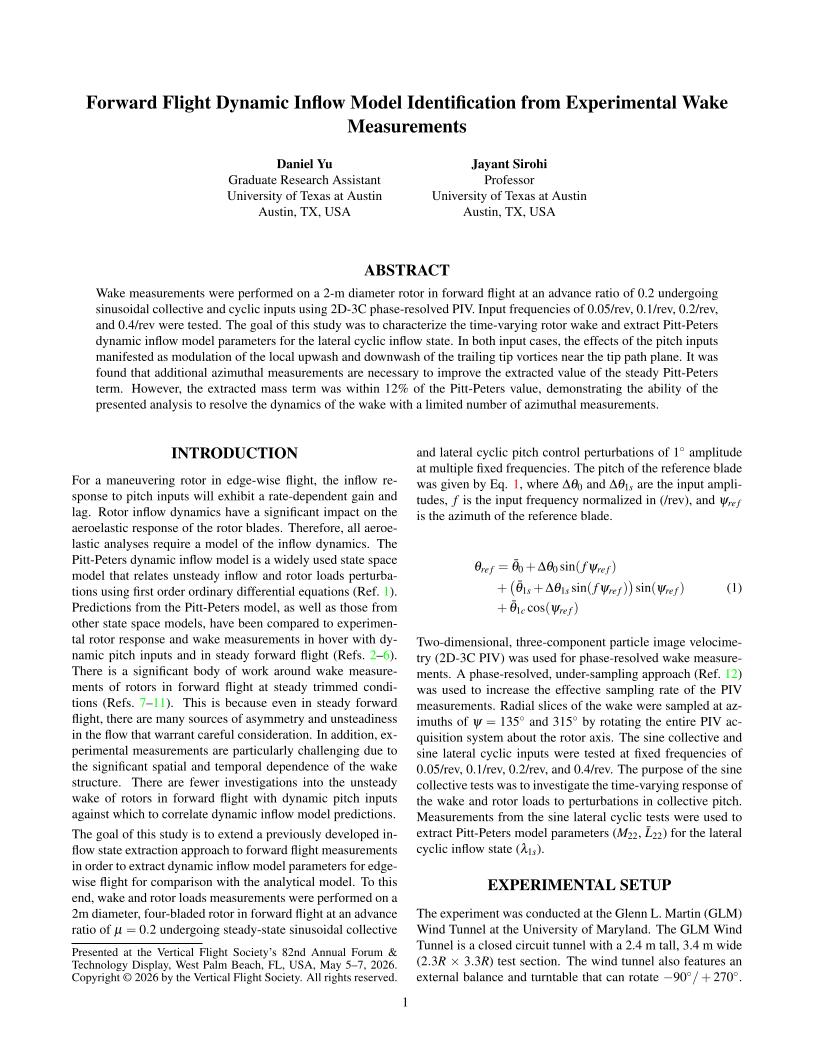

Did you attend Forum 82? Click the preview below to access the full paper.
