Sub-Scale Testing for Validation of eVTOL Simulations and Analysis of Disturbance Rejection Properties

Abstract:
This paper investigates a sub-scale testing methodology via Froude scaling combined with comprehensive simulation model development to validate Electric Vertical Take-off and Landing (eVTOL) aircraft simulations and disturbance rejection characteristics. Both sub-scale and full-scale quadrotor aircraft were modeled using the Distributed Electric Propulsion Simulation (DEPSim) and the Comprehensive Hierarchical Aeromechanics Rotorcraft Model (CHARM) for simulation analysis. The sub-scale simulation was validated using flight data from the sub-scale model, including frequency sweeps and impulsive gust disturbance tests in the Penn State University (PSU) indoor flight facility. The PX4 control architecture was modeled in DEPSim and implemented in both scale models, using Froude-scaling in the control laws with the limitation that the Electronic Speed Controller (ESC) dynamics were not fully replicated in the simulation. The scaling methodology and control laws were verified through gust response tests and the Hovering turn and hold Handling Qualities Task Element (HQTE) test. The results indicate that the sub-scale flight testing and simulation provide a low-risk and low-cost method to evaluate full-scale flight performance and disturbance rejection properties.

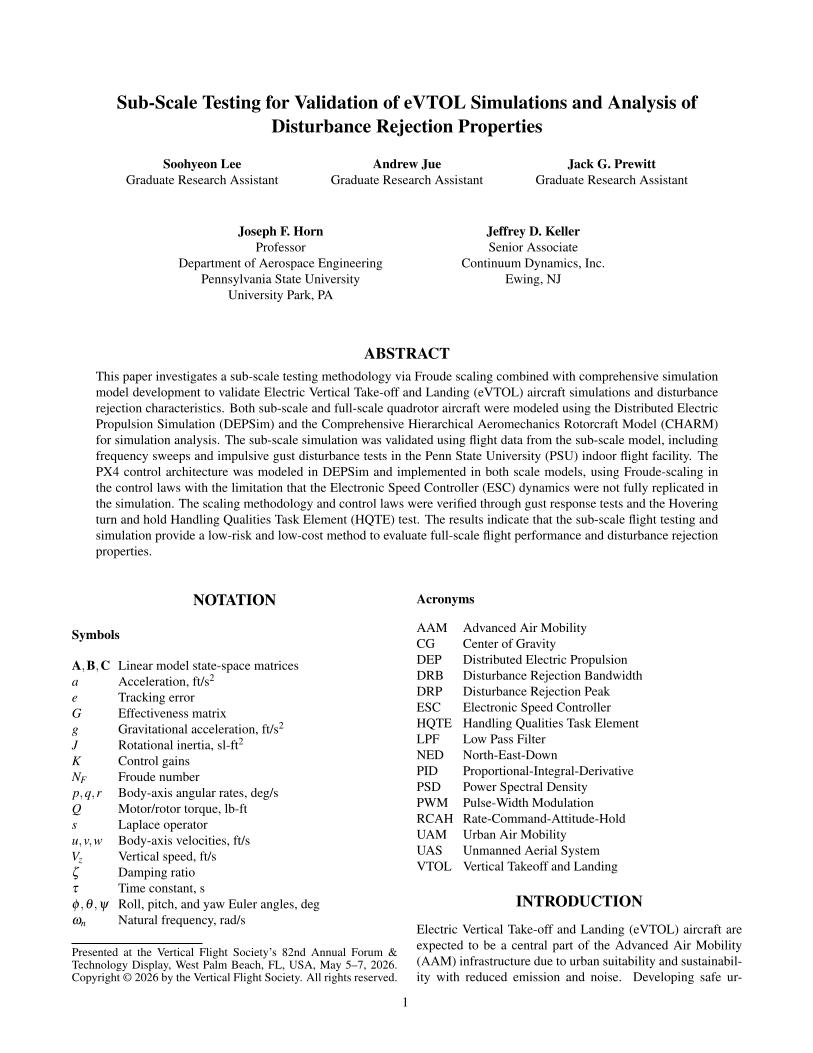

Did you attend Forum 82? Click the preview below to access the full paper.
