Understanding Vibratory Loads of a Pitch-Lag-Coupled Swashplate-less Rotor

Abstract:
This study investigates the dynamics and associated vibratory loads of an underactuated swashplate-less rotor and its impact on the flight dynamics of a small-scale helicopter powered by this rotor via a combined experimental and computational approach. Unlike prescribing cyclic pitch using a swashplate, here the pitch is a response to the 1/rev cyclic rotor speed input. This is enabled on the current two-bladed rotor using a skewed lag hinge that utilizes the cyclic speed variation to produce lagging motion and subsequently pitching the blades in a cyclic fashion (δ4 coupling) for generating the pitch and roll control moments. One of the key dynamic characteristics that distinguishes this rotor from a conventional swashplate-controlled rotor is that the two blades have dissimilar pitch and flap responses leading to high fixed-frame vibratory loads. Results show that a large 1/rev vertical shear force is transferred to the fuselage resulting in half-peak-to-peak loads of +/−0.67g. The flap responses of the two blades being out of phase caused a net inertial force, which was the dominant contributor to the vibratory vertical shear force. Upon removal of the flap hinge, the vertical shear force was reduced by almost 85% while increasing the control moment authority by 50%. The inertial moment about the rotor axis generated by cyclic lagging nearly balances the moment due to the angular acceleration (Ω ) of the rotor, which significantly reduced the dynamic torque requirement from the motor.

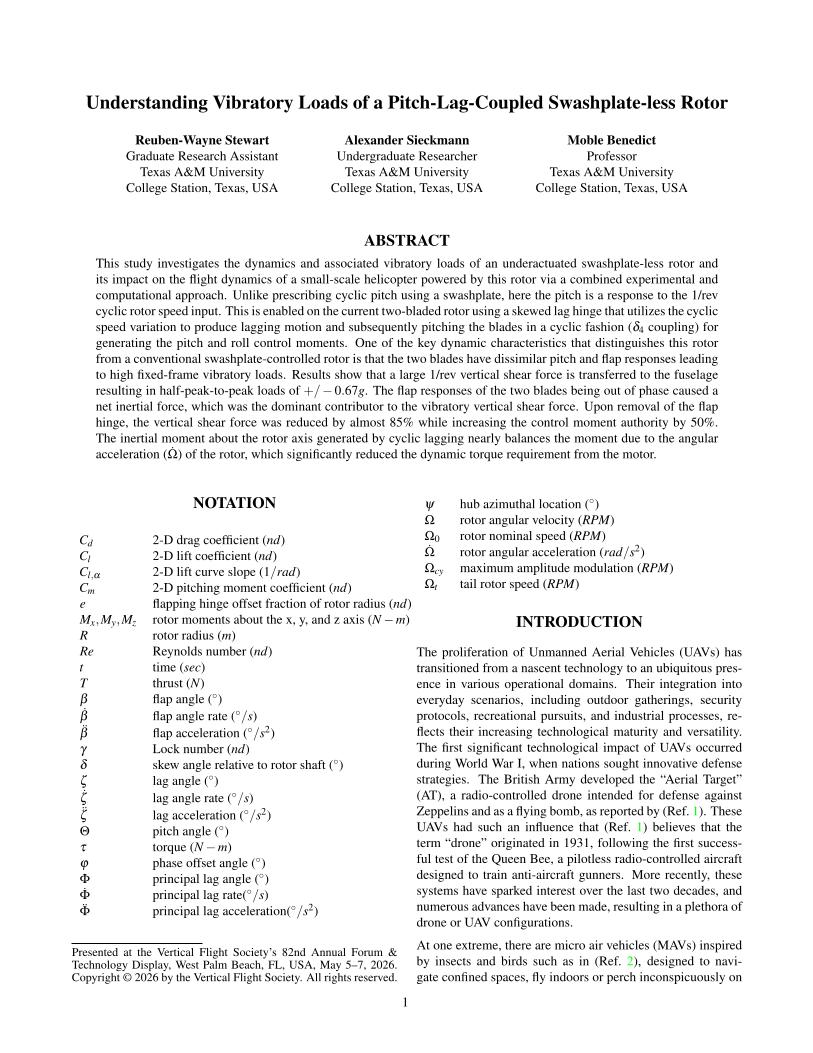

Did you attend Forum 82? Click the preview below to access the full paper.
