Optimization of Rotor Blade Airfoils Using Compressible Unsteady Flow Simulations for Hover and Forward Flight Performance

Abstract:
A multi-objective optimization of a rotor blade airfoil is presented using compressible unsteady Reynolds-averaged Navier-Stokes simulations directly within the optimization loop. The baseline SC1095 airfoil is optimized using NSGA-II with two objectives: pre-stall aerodynamic efficiency representing hover performance, and lift hysteresis loop area representing dynamic stall severity. The optimized airfoil exhibits increased maximum thickness with an aft-shifted crest and substantially higher camber. Static polars show improved lift-to-drag ratio at $Ma = 0.5$ and $0.6$. Hover performance is essentially unchanged relative to the baseline. In forward flight, a progressive power penalty is incurred above $\mu = 0.2$, attributed to higher profile drag at advancing blade Mach numbers. Dynamic stall simulations show an 80% reduction in peak drag and a 50% reduction in peak pitching moment excursion relative to the SC1095, demonstrating the effectiveness of the optimization for retreating blade conditions.

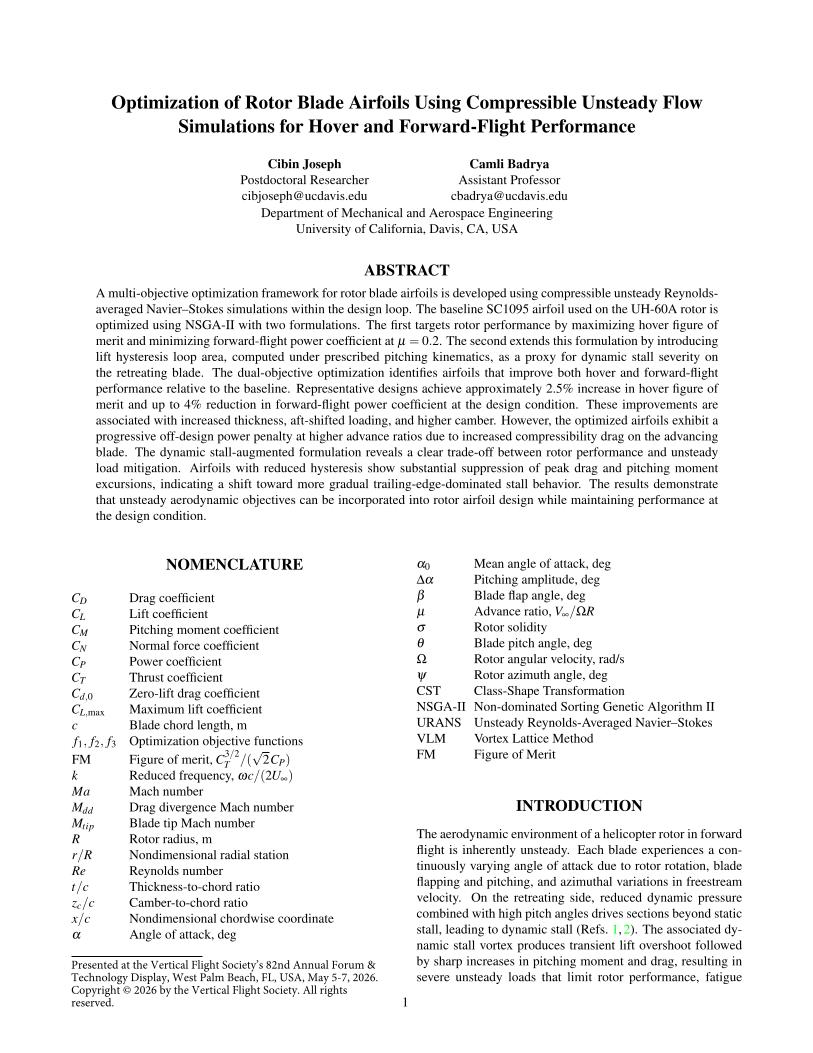

Did you attend Forum 82? Click the preview below to access the full paper.
