Cant Considerations for the Predesign of Multirotor Aircraft

Abstract:
A method for evaluation of control derivatives is introduced for the purpose of rapid design evaluation of an electric, fixed-pitch multirotor aircraft during the conceptual pre-design phase. This explicit linearization methodology allows rapid co-design of the vehicle configuration and control allocation using the pseudo-inverse method. A multi-objective design analysis is conducted for a 12 rotor lift + cruise eVTOL configuration subject to hover power requirements, controllability, and tolerance to failure conditions. Generalizable design guidelines are found and presented for the cant and rotor spin direction of the lift + cruise aircraft. The benefits shown include the addition of direct lateral force control derivative, a major increase in yaw control derivative, and reconfiguration to accommodate any Two Engine Inoperative failure conditions. These are achieved through mixing anhedral and dihedral rotor cant within each quadrant of the wing, setting the spin direction so the component of thrust in the yaw axis is additive with the motor reaction torque, and having larger cant angles inboard and closer to the center of gravity. Additional analyses of stability characteristics are performed using DynaPyVTOL, a medium-fidelity flight dynamics analysis tool for any configuration.

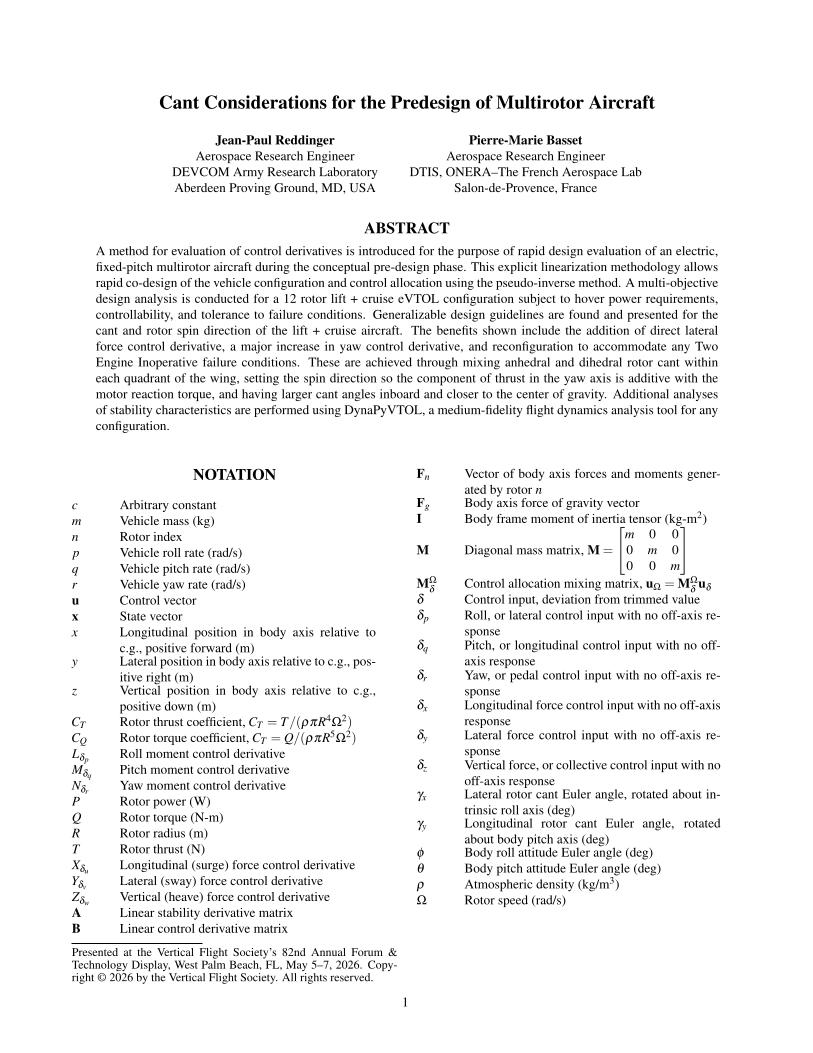

Did you attend Forum 82? Click the preview below to access the full paper.
