Shape Optimization of a Single-Stator Dual-Rotor Axial Flux Motor for eVTOL Aircraft

Abstract:
Emerging technologies in the field of electrified propulsion systems offer a promising solution to reduce the dependence on fossil fuels and improve efficiency. However, the design of high-power density electric machines introduces new challenges, including limited passive cooling potential and the issue of the weight of electric motors. To address these challenges, this paper considers analysis and design methods for high torque-to-weight ratio axial flux motors. A magnetic equivalent circuit model coupled with a lumped parameter thermal network is developed for design space exploration and optimization. This inexpensive analytical model predicts the performance of a single-stator dual-rotor axial flux motor based on geometry, loading condition, and slot and pole pair combination. To enable comparisons against real-world data, the optimization study was demonstrated using the hover mission requirements from the Research Aircraft for eVTOL Enabling techNologies (RAVEN) vehicle to minimize the mass of the motor. In tandem with the analytical model, a higher-fidelity finite element model was also developed, and good agreement between predicted power and efficiency was demonstrated across a range of axial flux motor designs. The lightest weight design that satisfied the hover mission requirements was the 12 pole pair 27 slot (12PP 27S) configuration with a fixed weight of 9.28 kg. The analytic model undersized the output power of the electric motor by approximately 9% across a range of slot and pole pair combinations.

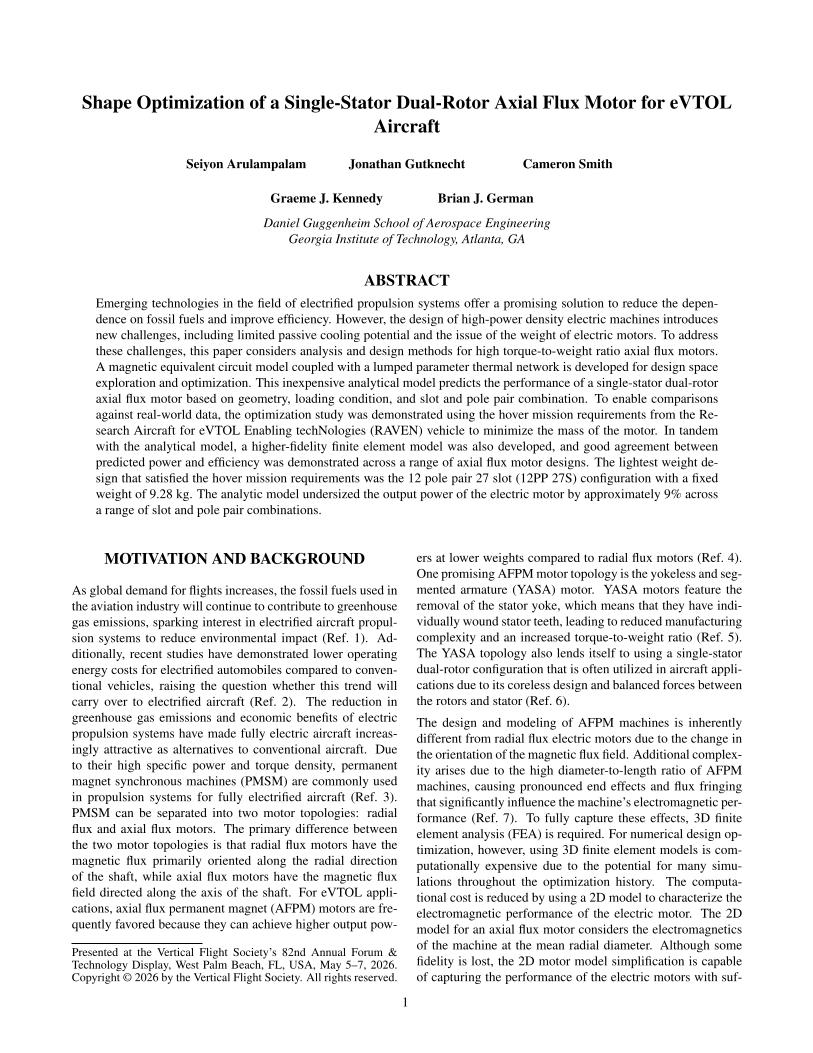

Did you attend Forum 82? Click the preview below to access the full paper.
