Maximizing Plastic Work in Crashworthy Rotorcraft Structures using Topology Optimization

Abstract:
We present a nonlinear topology optimization framework for designing crash--tolerant rotorcraft substructures by maximizing plastic work under prescribed crush displacement and volume constraints. The quasi-static response is modeled using a rate-independent elastoplastic formulation to capture path-dependent inelastic deformation of metallic components. A path-dependent adjoint method is developed to efficiently compute sensitivities of accumulated plastic work, revealing a mechanistic decomposition into elastic stiffness, deviatoric response, and yield surface contributions. Optimized 2D and 3D subfloor structures develop emergent plastic hinge networks and distributed deformation paths, significantly enhancing energy absorption compared to uniform designs. The results demonstrate that topology optimization can directly embed energy-dissipating mechanisms into primary rotorcraft structures, providing a practical framework for crashworthy rotorcraft and eVTOL airframe designs.

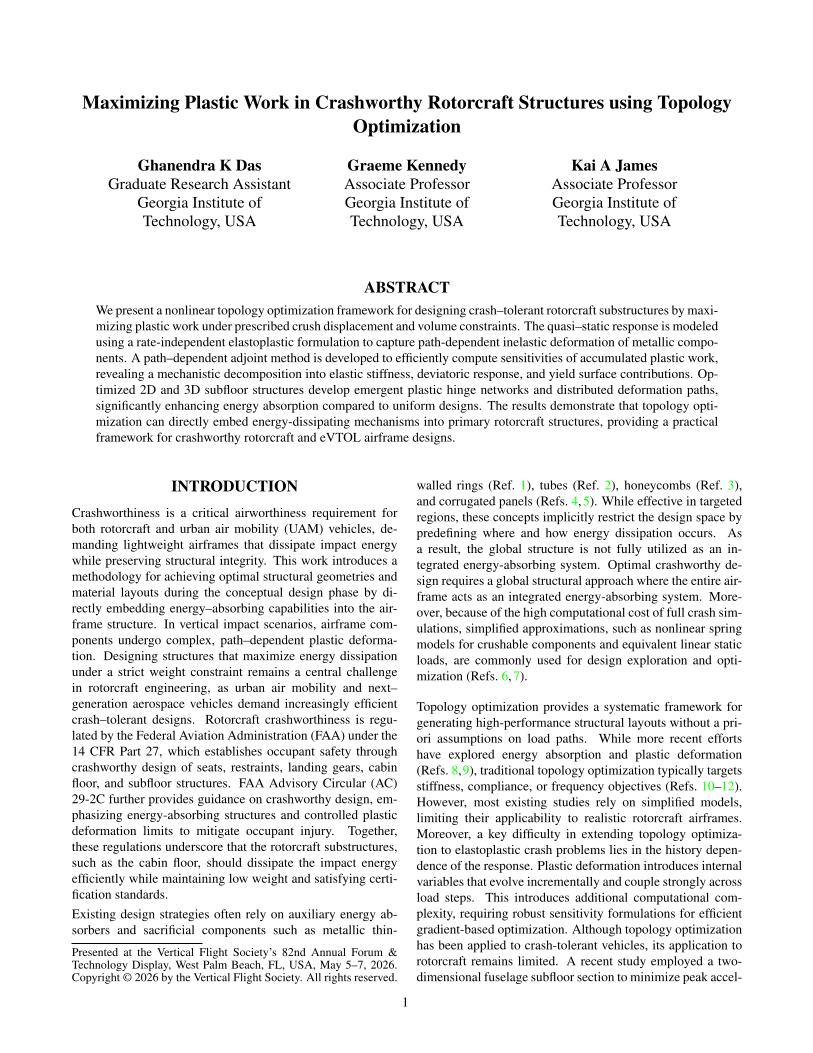

Did you attend Forum 82? Click the preview below to access the full paper.
