Operational Range Extension of a Multi-Passenger Lift+Cruise eVTOL Air Taxi

Abstract:
This study evaluates the impact of range extension on gross takeoff weight (GTOW) and energy cost for the NASA Lift+Cruise eVTOL configuration under present and near-term battery technology limitations. A baseline 8,210 lb, 6-passenger vehicle, originally designed for a 75-mile mission at 400 Wh/kg battery energy density, is shown to achieve only 15 miles at a more realistic 200 Wh/kg, largely due to the 20-minute SFAR reserve, which accounts for 64% of total onboard energy. To quantify the penalties of range extension, three sizing strategies are examined: fixed GTOW with payload trade-offs, fixed-geometry overloading, and fully co-scaled vehicle resizing. The co-scaled configurations reveal a strong nonlinear GTOW growth driven by an "adding battery to carry battery" effect, in which increases in GTOW necessitate heavier structure and propulsion, leading to a practical feasibility ceiling near 45 miles. Energy cost per payload-mile is found to be non-monotonic, reaching a minimum near 20-25 miles before increasing due to compounding weight penalties, contrary to trends predicted by fixed-weight analyses. Significant off-design penalties are also observed; operating a 40-mile aircraft on a 10-mile mission incurs a 72% energy cost increase relative to a co-scaled vehicle for 10 miles. Increasing battery energy density by 22.5% (to 245 Wh/kg) reduces the 6-passenger 40-mile design GTOW by 33% (from 13,712 lb to 9,187 lb) and shifts the optimal energy cost point outward to 30 miles. Ultimately, battery energy density is identified as the dominant parameter dictating the vehicle size, weight, performance, and the fundamental operational feasibility of UAM eVTOLs.

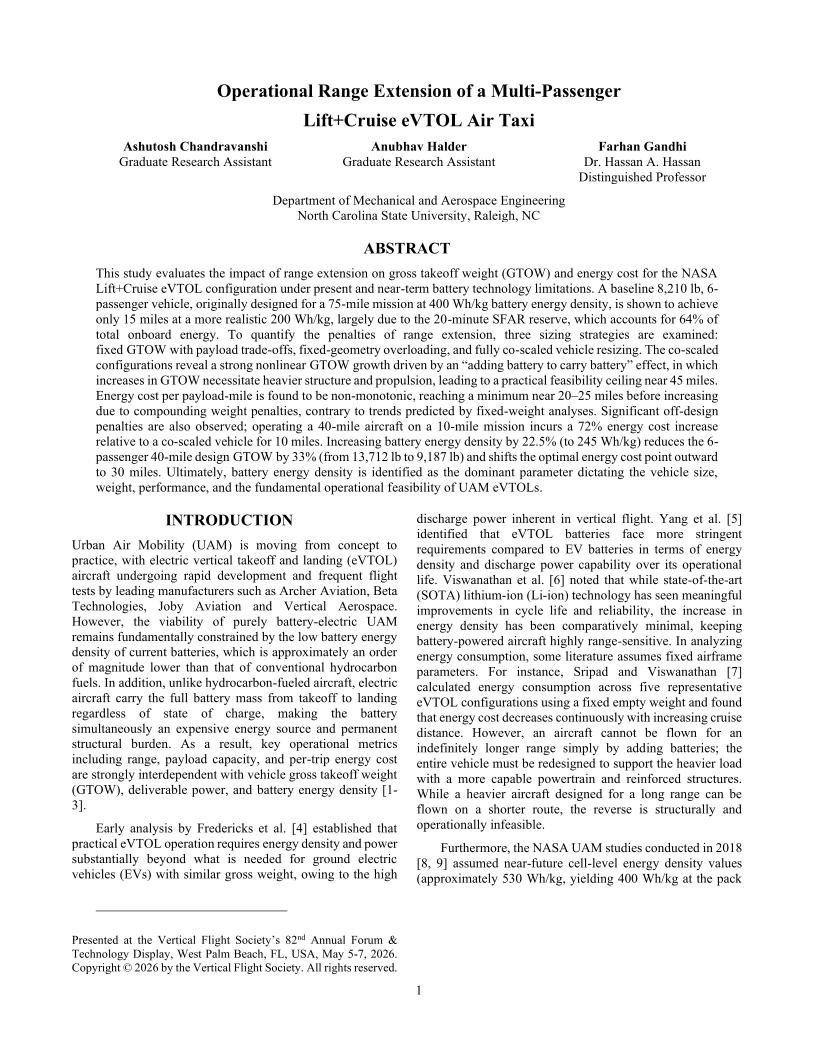

Did you attend Forum 82? Click the preview below to access the full paper.
