Design, Manufacturing, and Testing of Rotor Blades with Flax Fiber-Reinforced Composites and 3D-Printed Cores

Abstract:
This paper investigates the feasibility of using flax fiber-reinforced composites in combination with additively manufactured polymer cores for helicopter rotor blades. A new rotor blade with flax composite spar and skin laminates and a 3D-printed ASA Aero core was designed to be geometrically equivalent to an existing carbon fiber/foam reference blade of the MERIT rotor test rig and manufactured using identical tooling. Material characterization included compression testing of the printed core at ambient and elevated temperatures, single-lap shear adhesion testing with epoxy laminates, and hygroscopic conditioning of core and laminate specimens. Structural testing comprised static beam bending, experimental modal analysis with axial pre-loading to approximate centrifugal stiffening, and sustained-load creep and recovery testing of the flax blade. The results show that the 3D-printed core provides sufficient compressive stiffness at curing temperature and adhesion to epoxy laminates, enabling its use as an internal consolidation tool during blade manufacturing. Compared to the carbon reference blade, the flax/3D blade exhibits reduced flapwise and lead–lag bending stiffness, altered modal behavior, and pronounced viscoelastic effects, including creep, incomplete recovery, and strong hygroscopic swelling. Component-level hygroscopic tests reveal that moisture-induced mass and thickness changes can generate sufficient internal stresses to locally initiate structural damage. Overall, the study identifies key limitations and design considerations for applying flax fiber composites in primary rotor blade structures.

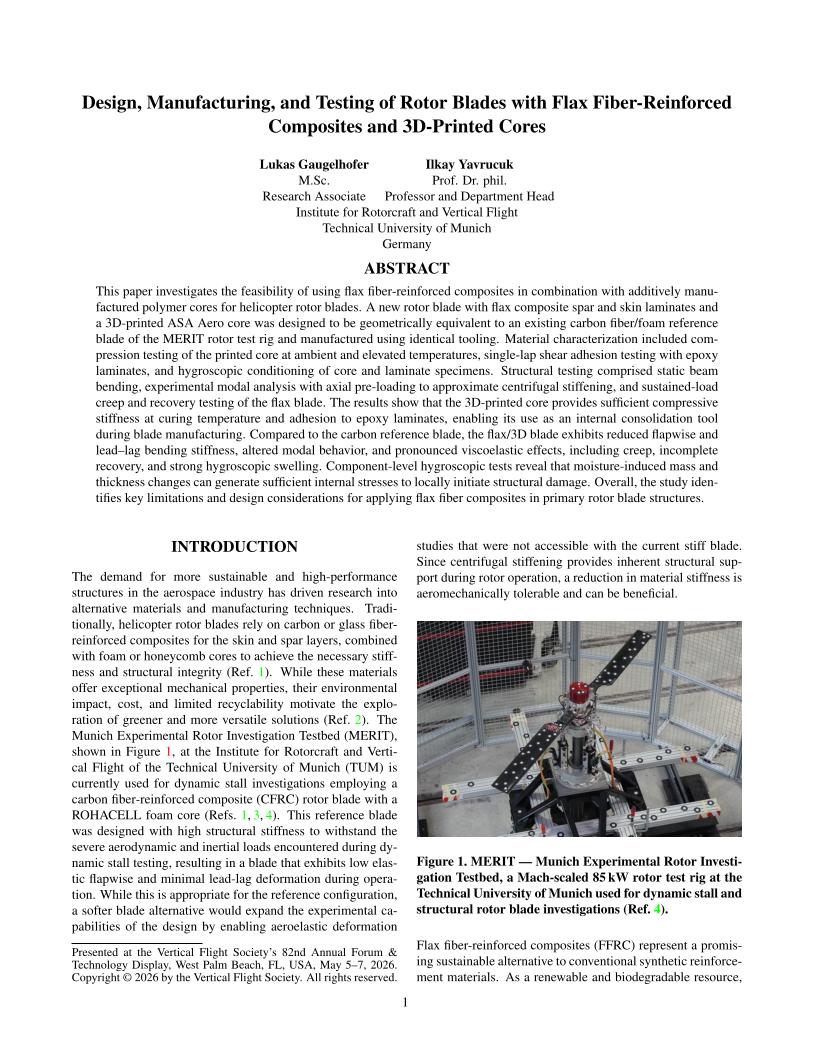

Did you attend Forum 82? Click the preview below to access the full paper.
