Design and Testing of a Guided Autorotative Delivery System for Wildfire Suppression

Abstract:
The design, testing, and analysis of a Guided Autorotative Delivery System (GADS) for suppression of incipient wildfires is described. The GADS consists of an unpowered 1 m diameter rotor, a control unit, and a payload of 2.2 kg of fire suppressant powder. On release from a fixed-wing UAV, the rotor passively deploys and enters autorotation, decelerating the payload and allowing precise delivery of the suppressant using cyclic pitch control. A numerical model of the system was developed to calculate the trajectory of the GADS during rotor deployment and descent, in the presence of ambient wind and cyclic pitch inputs. A reduced-scale model of the rotor was tested in a wind tunnel, and an uncontrolled full-scale, 1.5 kg prototype of the GADS was fabricated and tested by dropping from a hovering quadcopter as well as a fixed-wing UAV. The full-scale drop experiments validated the deployment and autorotation stability of the system, and demonstrated that the GADS maintains descent velocities suitable for incipient fire suppression (≈ 5 m/s). Numerical predictions indicate that the GADS descent trajectory can be controlled with cyclic pitch in an ambient crosswind of at least 5 m/s (10 kts). Measurements captured during the drop tests using onboard instrumentation show good qualitative agreement with numerical predictions. Future work will include drop tests with remotely controlled cyclic pitch, followed by fully autonomous controlled descent. The study establishes design guidelines for guided autorotative systems and illustrates their potential for scalable UAV-based wildfire suppression or emergency response.

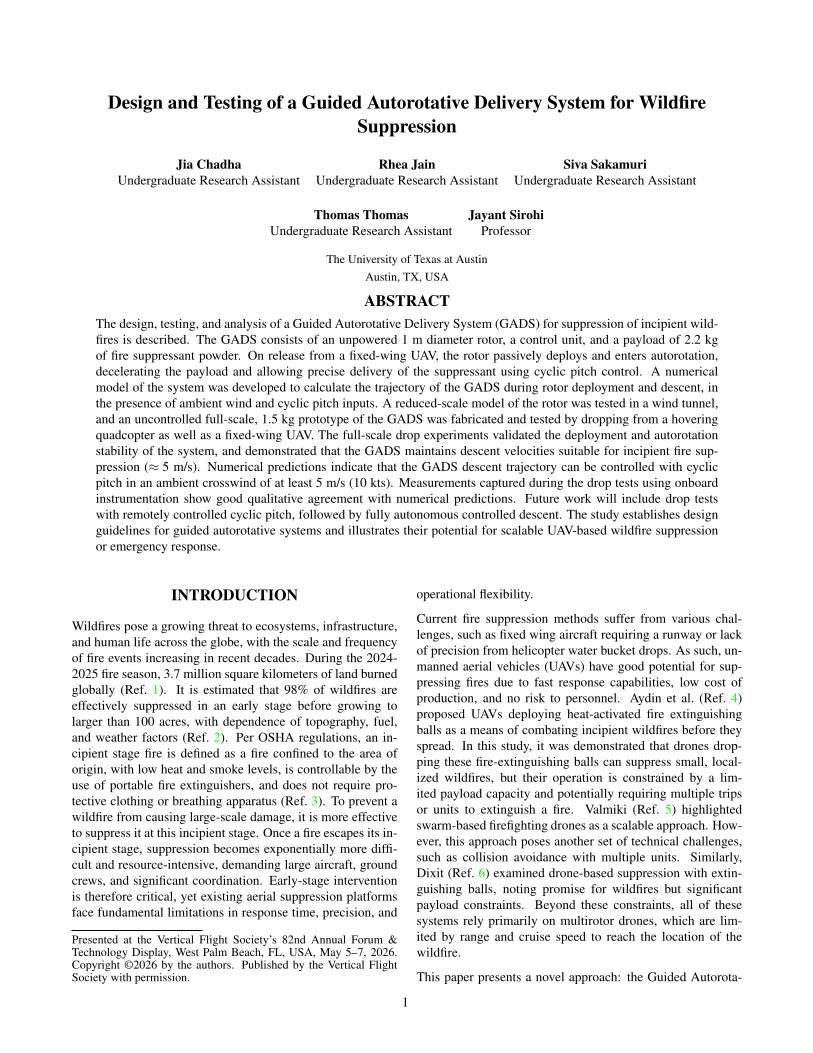

Did you attend Forum 82? Click the preview below to access the full paper.
