Optimization Using Analytic Sensitivities Derived from an Advanced Coupling Framework: Applications to Rotor Blade Twist

Abstract:
An advanced coupling framework was leveraged to assemble analytic sensitivities of lifting line theory aerodynamic loads with respect to externally-defined blade geometry parameters for optimization of main rotor performance of conventional helicopter configurations. Three vehicle weights and two flat-plate-equivalent drag configurations were examined across the flight envelope from hover to an advance ratio of 0.3. Two types of twist controls were investigated: quasi-static and fully active. Power savings were strongly correlated to the forward flight to hover power, ranging between 1.5 and 3.5% for quasi-static geometries and 2.0 and 4.5% for fully active controls when the installed power is twice of that required in hover. Blade twists optimized at higher power ratios were observed to favor high shaft tilt angles. Optimal twist deformation relative to hover-optimized designs is nonlinear across the blade span. Minimal penalties to aerodynamic vibrations were incurred through the use of either quasi-static or fully active twist controls as measured with a vibration intrusion index.

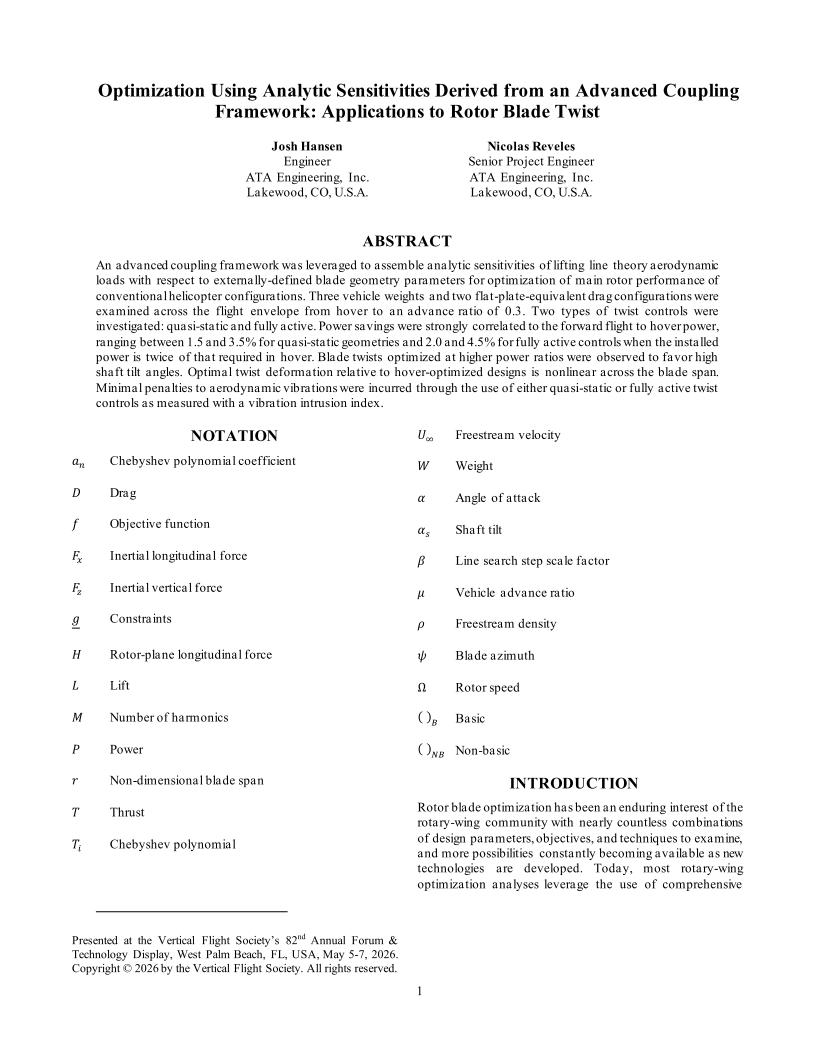

Did you attend Forum 82? Click the preview below to access the full paper.
