The Impact of Hybrid Electric Propulsion Technologies on Medium Lift Rotorcraft Performance

Abstract:
This paper explores the potential of three different hybridization solutions for a medium-sized rotorcraft: an electric tail rotor, an "eco-mode", and a "boost-mode". The solutions were evaluated as a retrofit to a generalized medium lift rotorcraft and the impact on performance across five mission types, representative of the typical use cases for a military rotorcraft, was assessed. Two separate rotorcraft performance modelling tools were used to carry out the assessment, allowing for the results to be cross-examined. The models predicted performance gains for the eco-mode configuration when utilizing the single engine cruise capability for low-speed applications. Likewise, the models predicted improved performance for the boost-mode configuration when operating at hot and high (6,000 ft, 95°F) conditions due to the increased power provided by the battery system. However, all three solutions suffered from increased platform empty weight which negatively impacted performance at certain flight states.

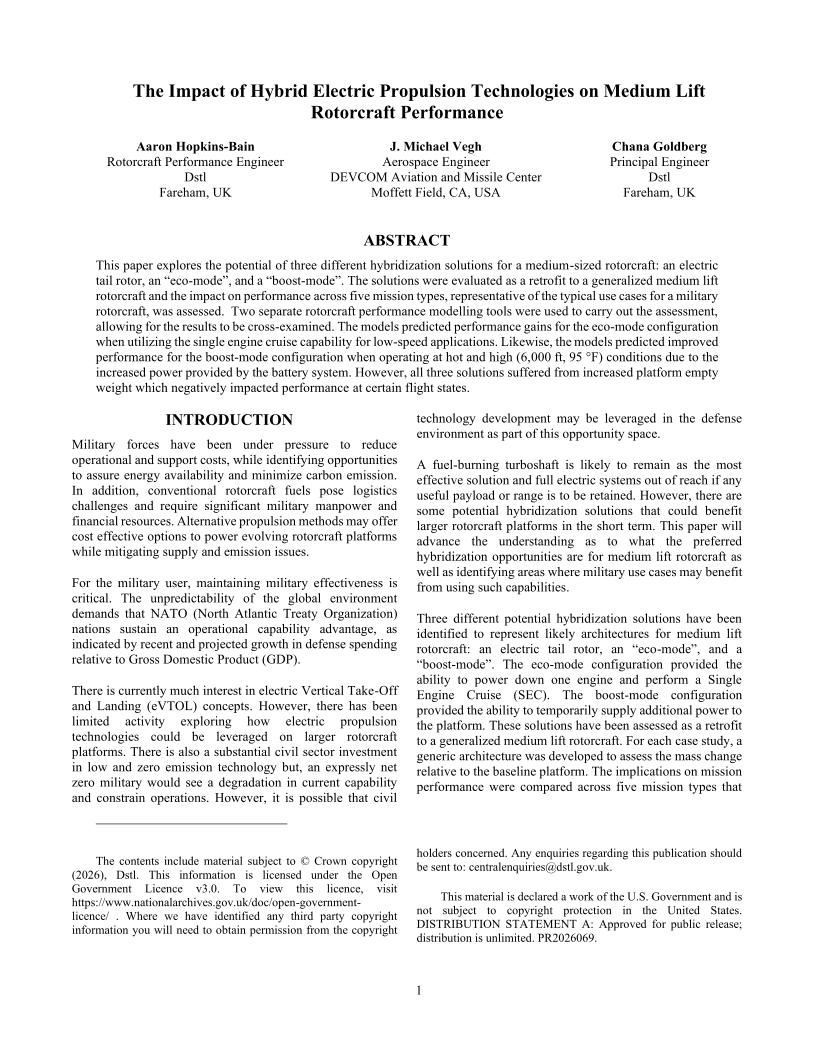

Did you attend Forum 82? Click the preview below to access the full paper.
