Optimization of a Hybrid-Electric Multi-Tilt-Rotor Aircraft with Conventional and Vertical Takeoff and Landing Capabilities

Abstract:
This paper demonstrates the sizing and optimization of a hybrid-electric multi-tilt rotor configuration of both conventional and vertical takeoff and landing capabilities. The study uses Parametric Energy-Based Aircraft Configuration Evaluator to design and optimize the aircraft. To explore the design space comprising both discrete and continuous design variables, a genetic algorithm is used for optimization. The design variables are not limited to conventional aero-propulsive parameters such as wing loading, aspect ratio, and disk loading. Battery-related parameters such as the maximum permissible depth of discharge, maximum permissible discharge rate, and the number of parallel strings in a battery pack are also considered in this work to study their impact on aircraft gross weight and fuel consumption. The Non-dominated Sorting Genetic Algorithm-II (NSGA-II) optimization framework is used to solve the multi-objective optimization problem, with objectives to minimize the maximum take-off mass and fuel weight. The sensitivity studies showed that higher wing-loading and lower-aspect-ratio designs resulted in lower gross weight. A higher permissible depth of discharge led to lower fuel consumption, despite a slight increase in gross weight. But increasing the number of parallel strings in a battery pack increased gross weight with negligible change in fuel consumption.

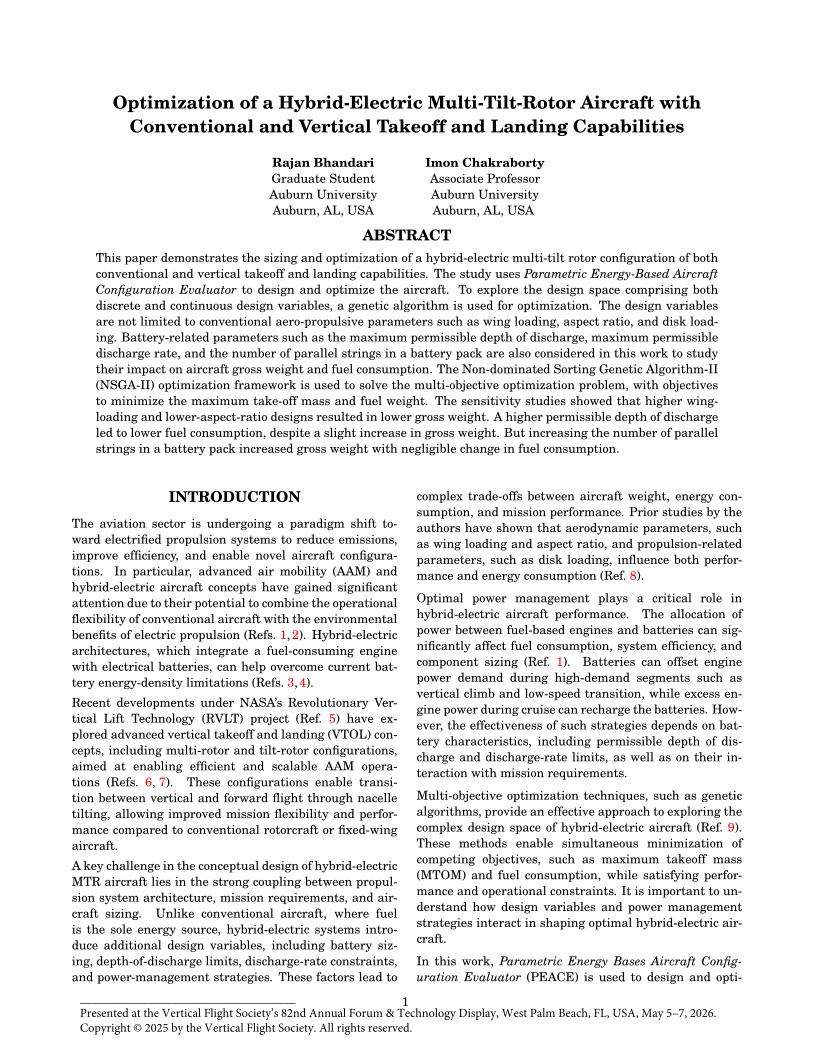

Did you attend Forum 82? Click the preview below to access the full paper.
