High-Fidelity CFD Analysis and PD Controller Evaluation for a Multirotor eVTOL Aircraft

Abstract:
A high-fidelity computational study investigates the aerodynamic behavior, flight response, and control effectiveness of a multirotor electric Vertical Take-Off and Landing (eVTOL) configuration. The investigation is organized into two parts. Part I employs an unsteady computational fluid dynamics (CFD) framework coupled with a six-degree-of-freedom (6-DoF) rigid-body dynamics module. Simulations for isolated coaxial rotors and a complete eVTOL isolate rotor aerodynamics and rotor–airframe interactions under constrained kinematics, quantifying lift capability, fuselage download, and a residual nose-up pitching moment arising from fore-aft rotor lift imbalance. Fully coupled 6-DoF free-flight simulations capture the transient vehicle response to a motor failure and recovery sequence during hover. Part II assesses flight control response through a cascade Proportional-Derivative (PD) controller implemented in MATLAB/Simulink across two maneuver cases: hover stabilization and climb rate tracking, which are parameterized using aerodynamic data extracted from the isolated rotor CFD simulation. This decoupled approach enables systematic gain tuning and controller assessment without the computational overhead of fully coupled closed-loop CFD simulations. The results confirm that the CFD–6-DOF framework effectively resolves tightly coupled aerodynamic-dynamic interactions inherent to distributed electric propulsion configurations, and that the cascade PD architecture provides initial control authority assessment across the primary flight axes. These findings establish a foundation for trim strategy development, advanced control law design, and future integration toward robust flight control for urban air mobility operations.

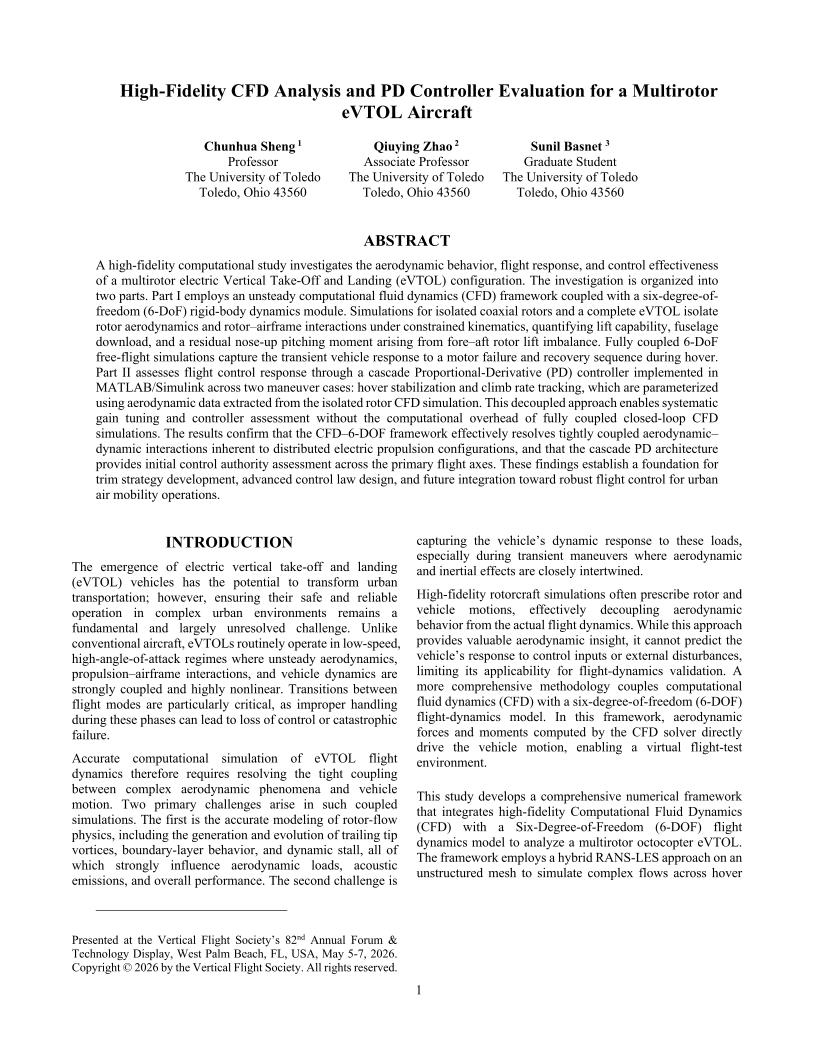

Did you attend Forum 82? Click the preview below to access the full paper.
