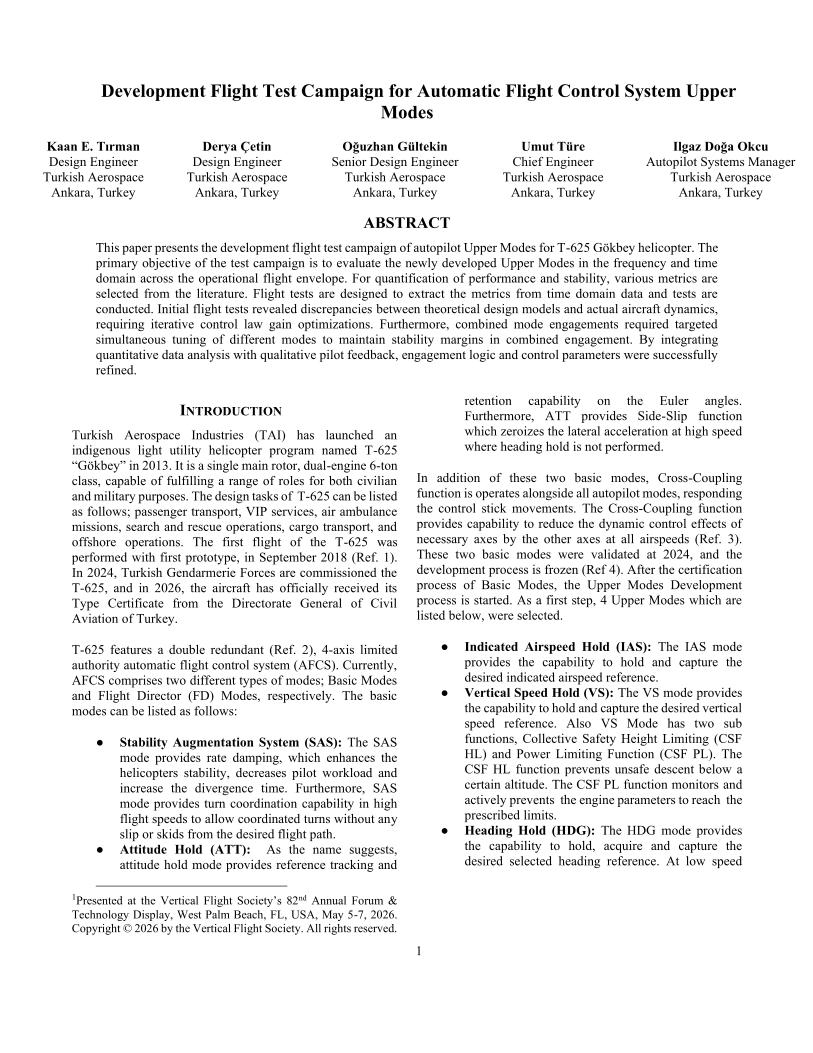

Development Flight Test Campaign for Automatic Flight Control System Upper Modes

Abstract:
This paper presents the development flight test campaign of autopilot Upper Modes for T-625 Gökbey helicopter. The primary objective of the test campaign is to evaluate the newly developed Upper Modes in the frequency and time domain across the operational flight envelope. For quantification of performance and stability, various metrics are selected from the literature. Flight tests are designed to extract the metrics from time domain data and tests are conducted. Initial flight tests revealed discrepancies between theoretical design models and actual aircraft dynamics, requiring iterative control law gain optimizations. Furthermore, combined mode engagements required targeted simultaneous tuning of different modes to maintain stability margins in combined engagement. By integrating quantitative data analysis with qualitative pilot feedback, engagement logic and control parameters were successfully refined.

Did you attend Forum 82? Click the preview below to access the full paper.
