Flight Test Validation of a Trajectory Control System for Simplified Vehicle Operations on a Tiltwing VTOL Aircraft

Abstract:
This paper presents the development, optimization, and flight test validation of a Trajectory Control System (TCS)-based flight control system for a tiltwing unmanned aerial vehicle. The TCS is a configuration-independent middle-loop longitudinal controller for vertical takeoff and landing aircraft and is integrated here with explicit model following inner-loop controllers, inverse propulsor models, and a tiltwing-specific control allocation scheme. The resulting flight control system provides coordinated control across vertical flight mode, hybrid flight mode, transition flight mode, and forward flight mode while relying on a concise feedback set and requiring only airspeed from the air data system. The control laws are obtained using a formal constrained optimization framework and transferred directly from simulation to flight without additional on-site retuning. Flight test results from piloted, semi-autonomous, and fully autonomous operations demonstrate stable and predictable behavior throughout the flight envelope, including tight hover performance, simultaneous climb rate and speed tracking in hybrid flight, and successful departure and arrival transitions at multiple speeds. Selected simulation-versus-flight comparisons further show that the nonlinear model captures the dominant trends in the measured response while also identifying specific aerodynamic and transition regime effects that warrant further refinement. Overall, the results demonstrate that the TCS + EMF architecture provides a practical and effective control solution for tiltwing VTOL aircraft.

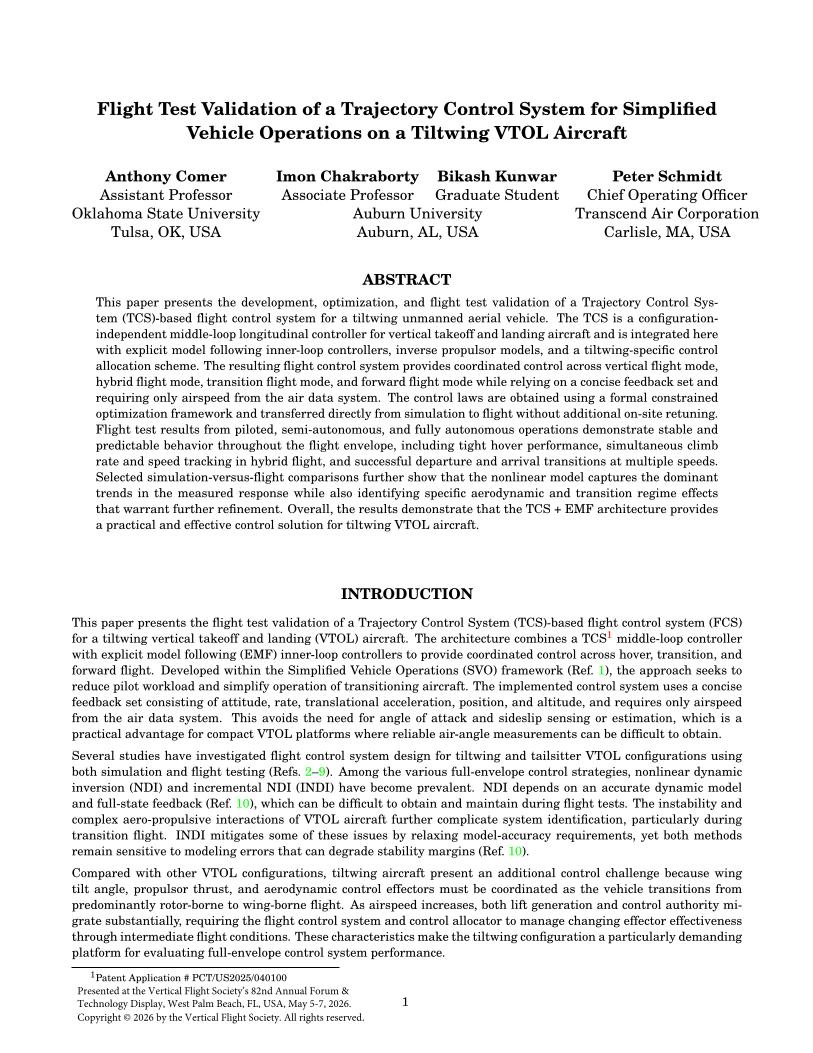

Did you attend Forum 82? Click the preview below to access the full paper.
