Multifidelity Aeroelastic Framework for Predicting Trim of Fixed and Rotary Wing Aircraft

Abstract:
In this study, a multifidelity aeroelastic framework is presented for predicting trim conditions in rotary-wing aircraft, with the main focus placed on the DUST implementation and its application to helicopters and quadrotors. The methodology combines aerodynamic and structural solvers of different fidelity, specifically DUST and the multibody dynamics solver MBDyn, through the preCICE coupling interface to enable direct comparison with rigid and coupled aeroelastic solutions. The trim problem is formulated from the six degree of freedom rigid body equilibrium equations in a helical turn reference frame, naturally covering both steady and maneuvering flight. Although the same formulation can be extended to fixed-wing configurations, the present paper is focused on rotorcraft applications. The framework is first applied to the SA330 Puma helicopter, chosen for the availability of validated flight test data. The methodology is then extended to a multirotor derived from a NASA quadrotor, demonstrating that the same trim strategy can be transferred to distributed-lift rotorcraft. Results highlight the potential of the proposed approach to provide physically consistent and computationally affordable predictions of helicopter and multirotor equilibrium states.

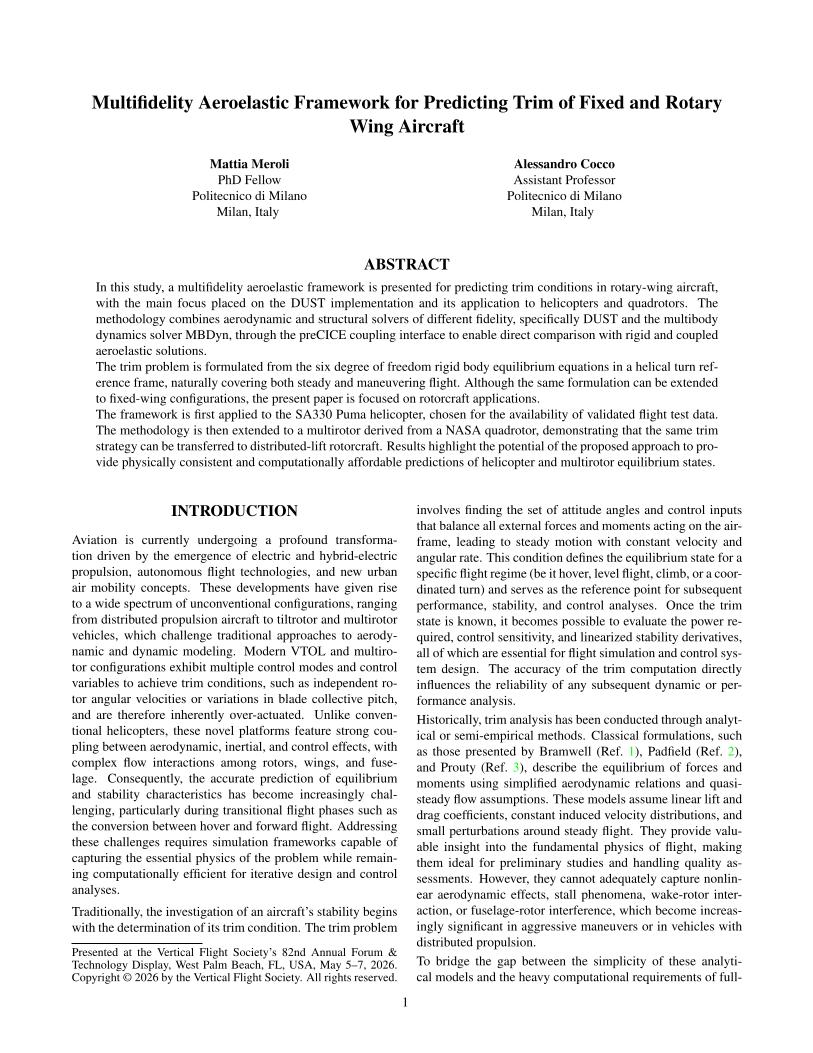

Did you attend Forum 82? Click the preview below to access the full paper.
