Computational Performance Analysis of Impact Dampers in Vibration Control of eVTOL Booms

Abstract:
Electric vertical takeoff and landing (eVTOL) aircraft have rapidly emerged as a potential promising solution for sustainable and scalable urban air mobility. These vehicles are at a crucial stage of development, with sub-scale and full-scale flight test campaigns already underway. In forward flight, critical structural components of these variable RPM rotary wing aircraft can experience strong time varying aerodynamic loads. These components are lightweight, stiff, and often have very little intrinsic damping. Thus, from a life-cycle perspective, vibratory strains are of significant concern. This work investigates the use of Impact Dampers (IDs) in attenuating the bending and torsional response of a characteristic eVTOL boom. A computational reduced order model of an ID is developed using the Hunt-Crossley nonlinear contact model and linear beam finite elements. Predicted damper performance is compared with prior experimental measurements. Parametric studies are performed by varying key damper design variables, and predicted trends are shown to be consistent with experimentally observed behavior. The IDs attenuated the system structural response at resonance by 60.7% in bending and 52.1% in torsion, for a 5% mass penalty. Building on works presented at the 80th and 81st Vertical Flight Society Annual Forums, this publication is a next step towards establishing IDs as a viable multi-modal passive vibration control device in variable RPM multirotor vehicles.

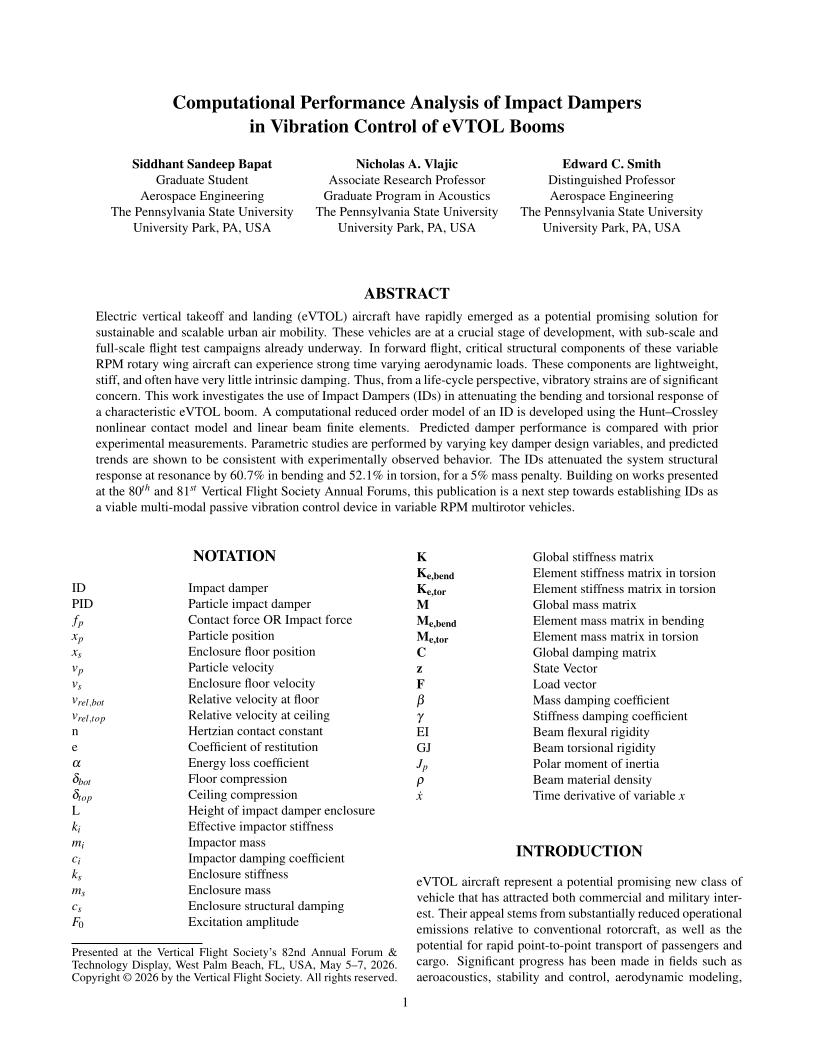

Did you attend Forum 82? Click the preview below to access the full paper.
