Experimental Study Of Fuselage Spacing On The Development Of The Vortex Ring State

Abstract:
A wind tunnel investigation to assess the impact of rotor-fuselage spacing on the development of the Vortex Ring State and flow topology is presented. Particle Image Velocimetry was utilised to investigate flow mechanisms across a range of rotor-fuselage spacings and descent ratios, which were compared to that of an isolated rotor configuration. Mean flow data was used to identify coherent flow structures, whilst flow unsteadiness was investigated through statistical analysis of the velocity fluctuations. It was found at cases of Vortex Ring State onset, the presence of the fuselage delays the development of the Vortex Ring State for all rotor-fuselage separation distances tested. Furthermore, certain cases of rotor-fuselage spacings display a rotor-fuselage aerodynamic interaction that results in an increased effective descent ratio.

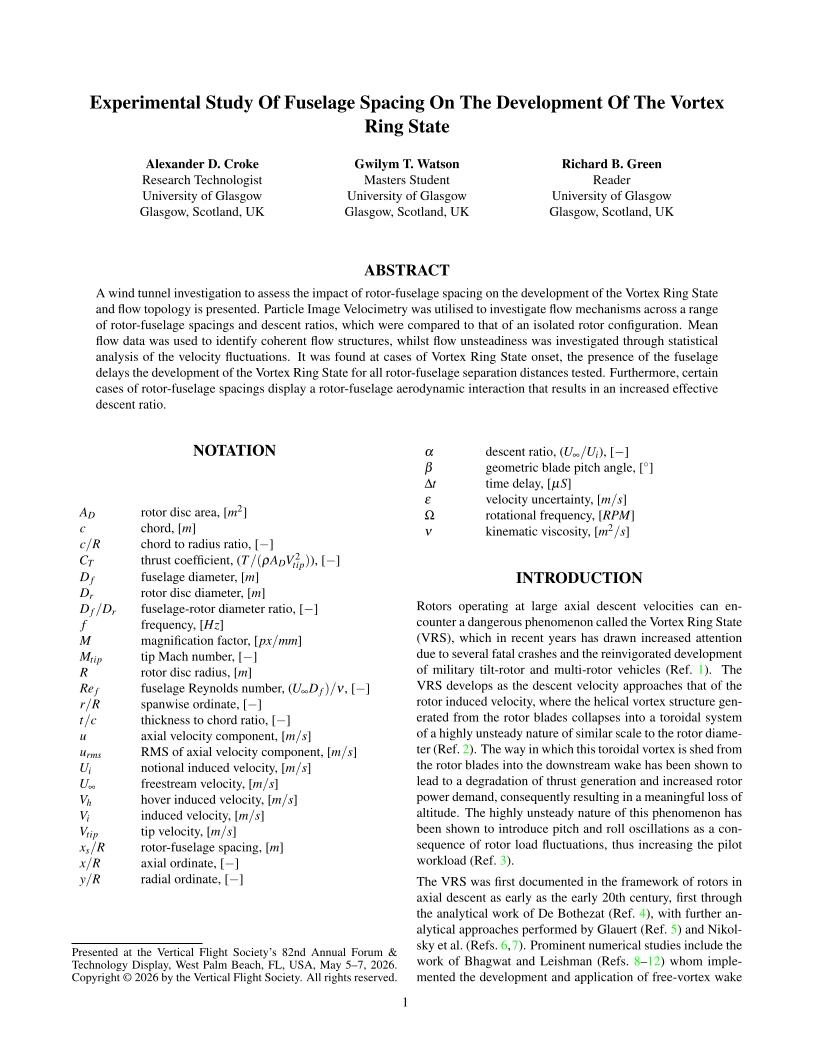

Did you attend Forum 82? Click the preview below to access the full paper.
