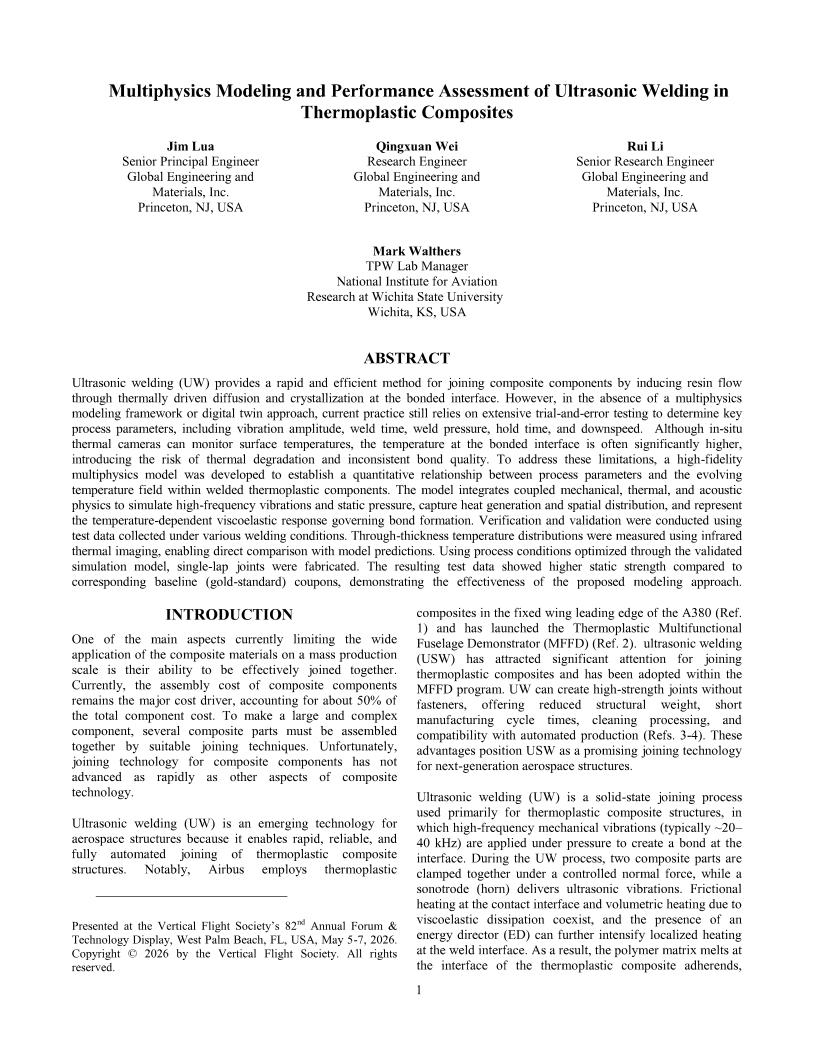

Multiphysics Modeling and Performance Assessment of Ultrasonic Welding for Thermoplastic Composites

Abstract:
Ultrasonic welding (UW) provides a rapid and efficient method for joining composite components by inducing resin flow through thermally driven diffusion and crystallization at the bonded interface. However, in the absence of a multiphysics modeling framework or a digital twin approach, current practice still depends on extensive trial-and-error testing to determine key welding parameters such as vibration amplitude, weld time, weld pressure, hold time, and downspeed. While in-situ thermal cameras can monitor surface temperatures, the internal temperature at the bonded interface is often significantly higher, introducing the risk of thermal degradation and inconsistent bond quality. To overcome these limitations, GEM developed a high-fidelity multiphysics model to establish a quantitative relationship between process parameters and the evolving temperature field within welded thermoplastic parts. The model integrates coupled mechanical, thermal, and acoustic physics to simulate high-frequency vibrations and static pressure, capture the generation and spatial distribution of heat, and represent the temperature-dependent viscoelastic response that governs bond formation. A validation test matrix was designed by systematically varying weld time and vibration amplitude. Through-thickness temperature distributions were measured using infrared thermal imaging, enabling direct comparison with model predictions. Upon validation, the model was applied for process tailoring, allowing precise control of temperature distribution to achieve target bond strength. This integrated modeling and validation approach demonstrated substantial benefits, including reduced design iterations, accelerated process optimization, and improved quality and performance of welded composite structures.
