Investigation of Forward-Flight Roll-Control Enhancement in a Quadrotor Biplane Tailsitter

Abstract:
This paper utilizes a combined experimental and modeling approach to investigate techniques for improving the forward-flight roll-control authority of a Quadrotor Biplane Tailsitter (QBiT). QBiT is a mechanically simple, efficient hover/cruise aircraft whose roll authority in forward flight is traditionally limited by differential propeller-torque-based control. The two roll-control enhancement techniques investigated are propeller canting and the use of ailerons. A 2-kg instrumented QBiT platform was developed and flight tested to collect high-fidelity flight data across multiple flight regimes including hover, transition, cruise, and coordinated turns. A flight dynamics model was developed and validated using wind tunnel measurements and flight-test data. Flight tests showed that the cant-only configuration exhibited limited roll authority during coordinated turns due to motor control saturation, whereas the cant-plus-aileron configuration provided improved roll performance. Using test data from forward-flight roll excitation maneuvers, roll-control authority was evaluated both in the time domain and frequency-domain. The results showed that adding ailerons increased forward-flight roll-control authority by about 2.3 times from analyzing the flight data and by up to 2.6 times based on the flight dynamics simulations.

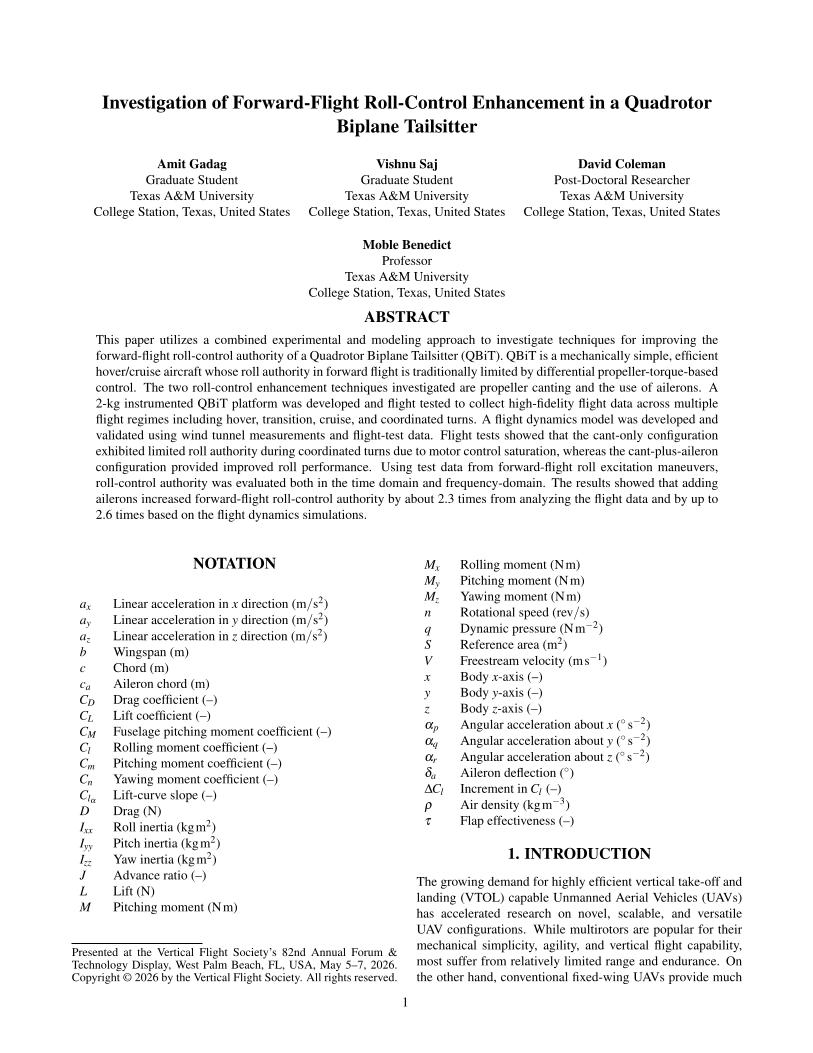

Did you attend Forum 82? Click the preview below to access the full paper.
