Impact of Airfoil Tab Geometry on Aerodynamic Performance and Structural Dynamics

Abstract:
Rotorcraft airfoils often feature a tab which aides in the manufacturing of composite rotor blades, but also has aerodynamic merits. This study performs a comprehensive analysis of the impact of this tab on the 2D airfoil performance, structural adjustments and 3D rotor performance. The aerodynamics are evaluated using CFD, with CFD/CSD coupled results for the rotor performance. The structural data is adjusted using an FEM based in-house process. The HART II model rotor has been taken as a baseline and modified according to the tab variation studies. These included the comparison of a sharp trailing edge versus a tabbed airfoil, various tab thicknesses, lengths, and angles. The studies showed a variation of peak Figure of Merit between 66% to 68% and peak rotor L/D from 4.2 to 4.6 The careful design of the airfoil tab is therefore advised, but similarly the structural design of rotor blades.

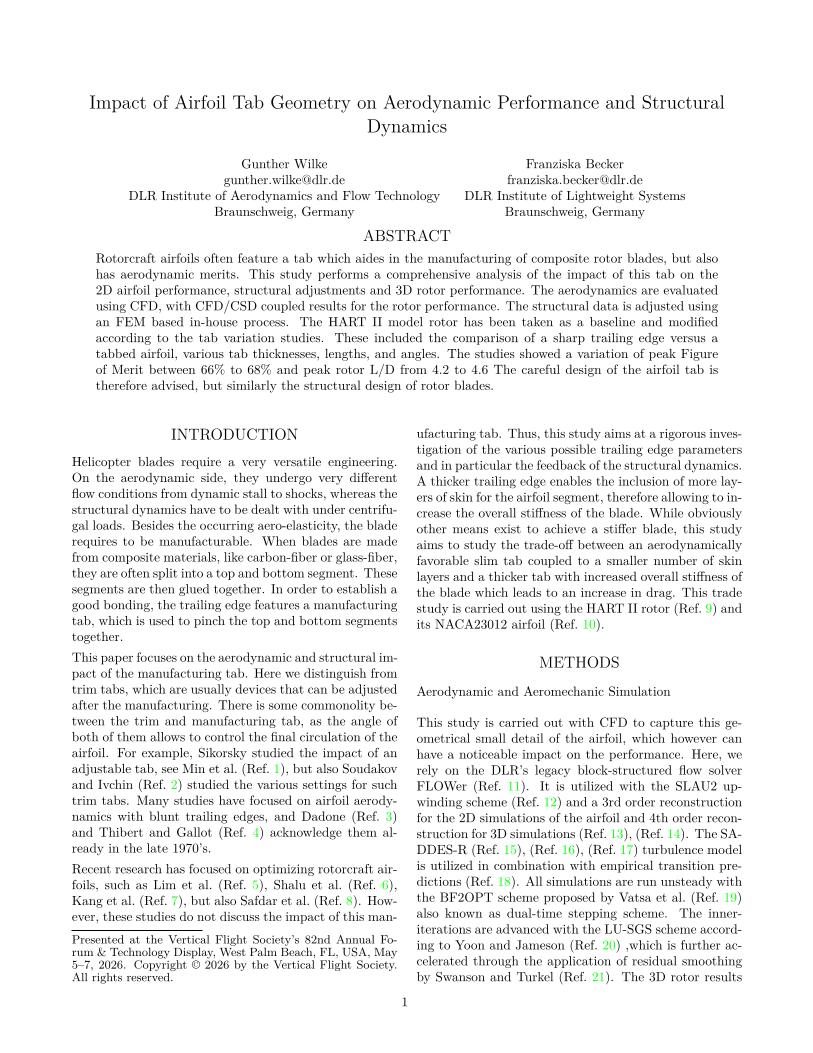

Did you attend Forum 82? Click the preview below to access the full paper.
