CFD-CSD-FCS Free-Flight Co-Simulation Correlations with S-92A Maneuvering Flight Tests

Abstract:
The Sikorsky S-92® helicopter fleet, representing more than 300 aircraft and 2.6 million flight hours, is relied upon to support a large range of important missions across the globe. In previous efforts, a high-fidelity CFD-CSD based full-aircraft simulation methodology, co-simulated with production FCS, was developed and applied to model both coaxial aircraft and single main/tail rotor configurations (Refs. 1-5). The CFD solver is based on the CREATE™-AV HELIOS toolset (Ref. 6) and the CSD solver is based on Rotorcraft Comprehensive Analysis System (RCAS) (Ref. 7). The current paper further correlated the CoSim methodology (Ref. 1) with the S-92® helicopter flight-test database at both hover, cruise and edge-of-envelope maneuver flight conditions. The consistent correlations for flight dynamics, static and fatigue component loads at conditions across the flight envelope demonstrate the reliable predictive capability of the high-fidelity CoSim methodology to be-used as a virtual digital flight test and to support advanced design at early stage.

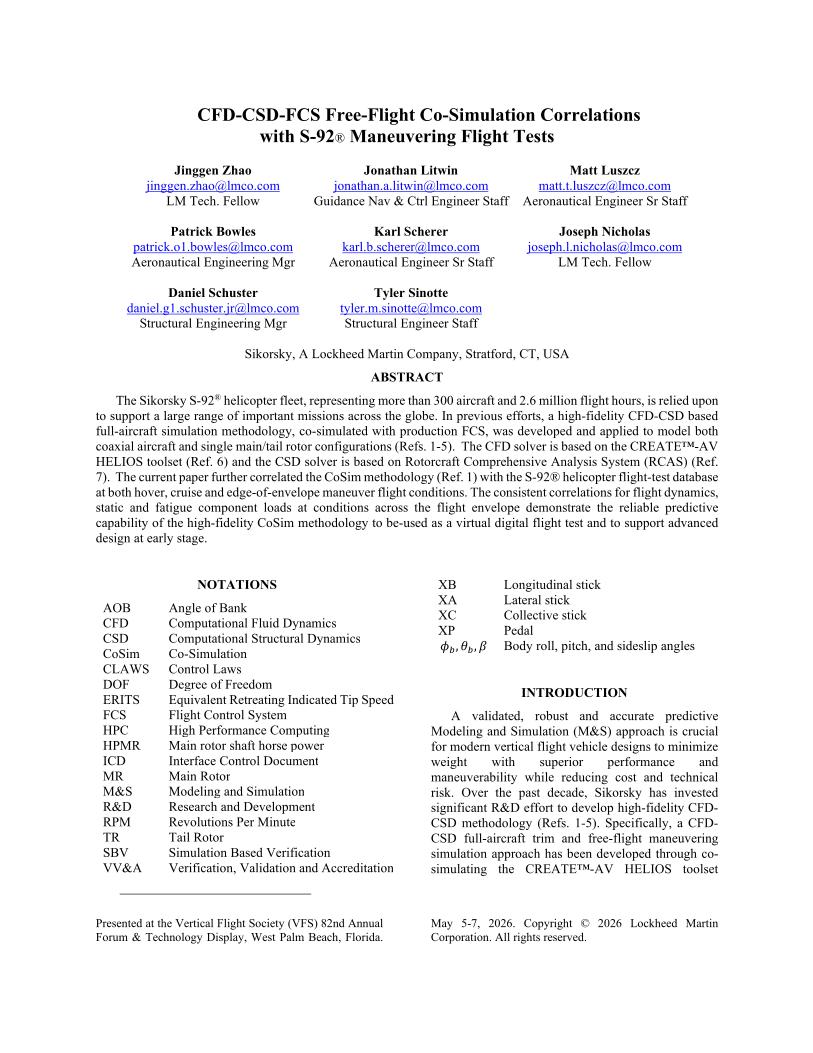

Did you attend Forum 82? Click the preview below to access the full paper.
