Inflight Measurements of the Empennage of an Ultralight Coaxial Helicopter

Abstract:
The empennage of a helicopter is largely responsible for its stability in forward flight. Its performance is mainly determined by its aerodynamics. In this paper, the empennage of a CoAX 2D ultralight research helicopter is analyzed in detail. For this purpose, the helicopter was equipped with flow measurement devices and flight tests were performed, covering different flight conditions. Measurements from a nose boom as well as the pilot’s control inputs and helicopter's position are available for evaluation. For the empennage in particular, seven-hole flow probes were mounted on it and various cameras were used to record the movement of the surface tufts.

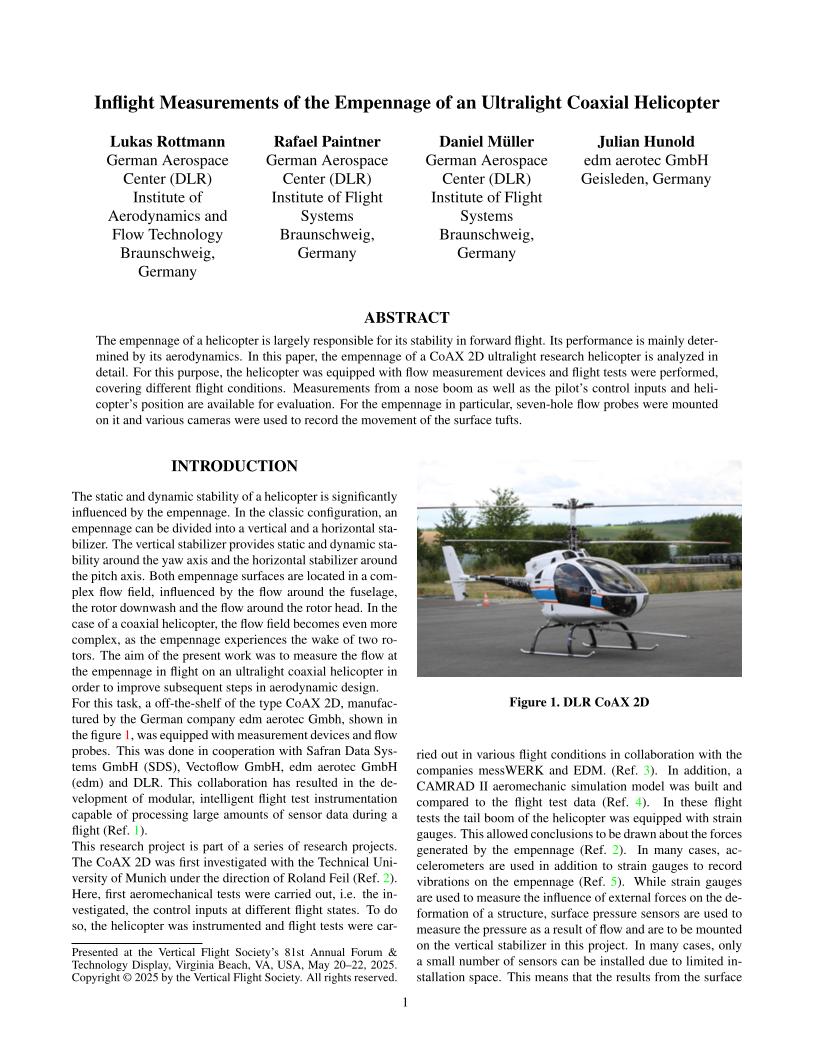

Did you attend Forum 81? Click the preview below to access the full paper.

The full paper is also available for purchase at the Vertical Flight Society Online Library and Store.
