Investigation of Contributing Phenomena to Unanticipated Yaw for Accident Mitigation

Abstract:
This paper provides an overview on the contributing phenomena to unanticipated yaw described in the FAA Helicopter Flying Handbook. Trimmed aerodynamic - flight-mechanic - coupled simulations with a validated model of the BK117 C-2 capture the relevant interactions for weathervaning, main rotor-to-tail rotor interactions and vortex ring state effects at the tail rotor. An investigation of the impact of the main rotor downwash on the vortex ring state at the tail rotor in sideward flight and yaw turn is provided, concluding that the presence of the main rotor effectively inhibits the occurrence of a fully developed deep vortex ring state at the tail rotor. The consequent limited impact of the incipient tail rotor vortex ring state on the helicopter trim is estimated. Further, maneuver simulations of the BK117 C-2 are provided, describing the typical entry in unanticipated yaw turn and the exit to stop the yaw motion by means of pedal inputs of different magnitude and input speeds.

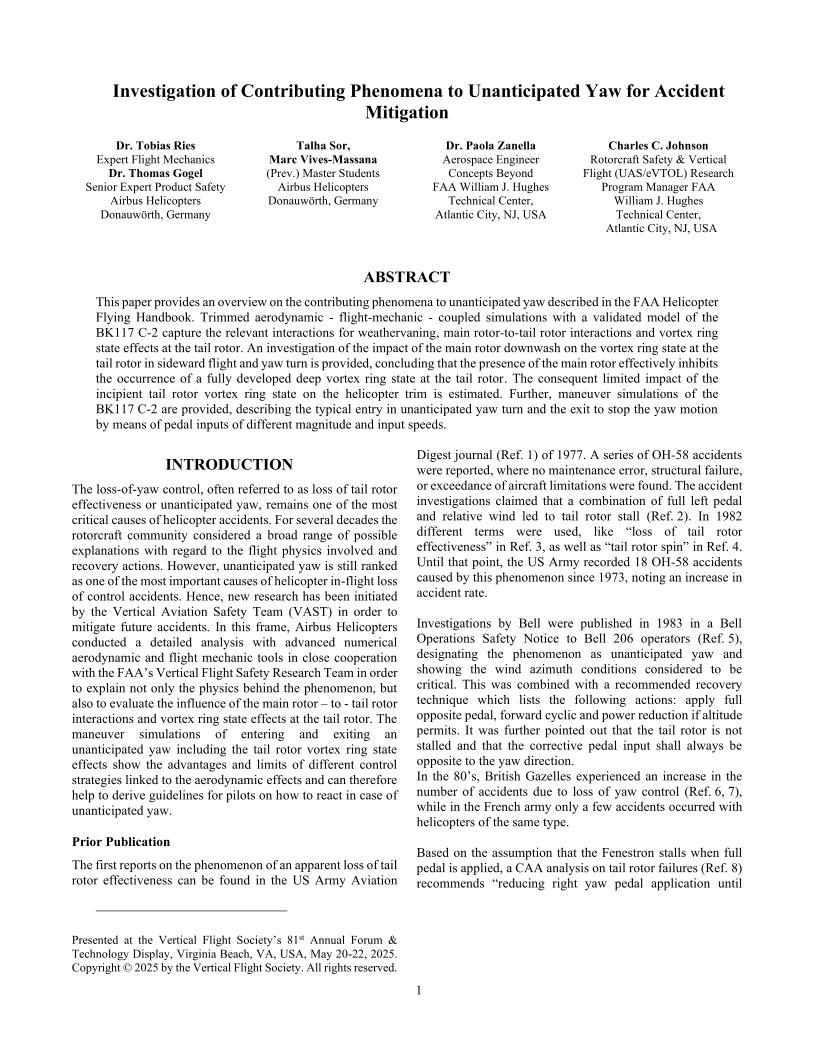

Did you attend Forum 81? Click the preview below to access the full paper.

The full paper is also available for purchase at the Vertical Flight Society Online Library and Store.
