Design Exploration of Airfoils for Rotorcraft Applications under Dynamic Conditions

Abstract:
This paper explores novel airfoils for rotorcraft applications using a gradient-free, multi-objective genetic algorithm with 2D URANS simulations. The study considers dynamic kinematics at a Reynolds number of 5×105 and a mean Mach number of 0.35. Two optimization scenarios are analyzed: 1) pre-stall kinematics (0° ≤α ≤10°) and 2) dynamic stall kinematics (0° ≤ α ≤ 20°). The paper compares two objective functions: f1, based on the cycle averaged lift, and ˜ f1, which modifies f1 by penalizing hysteresis in the lift coefficient. The effects of uniform vs. fluctuating freestream velocity and reduced frequency on optimal airfoils are also discussed. The proposed optimization approach has resulted in novel airfoil shapes that are characterized by a drooped nose, with a convex surface on the aft upper surface similar to a reflex camber in pre-stall kinematics and less unsteadiness in the air loads for the optimized airfoils under the dynamic stall kinematics.

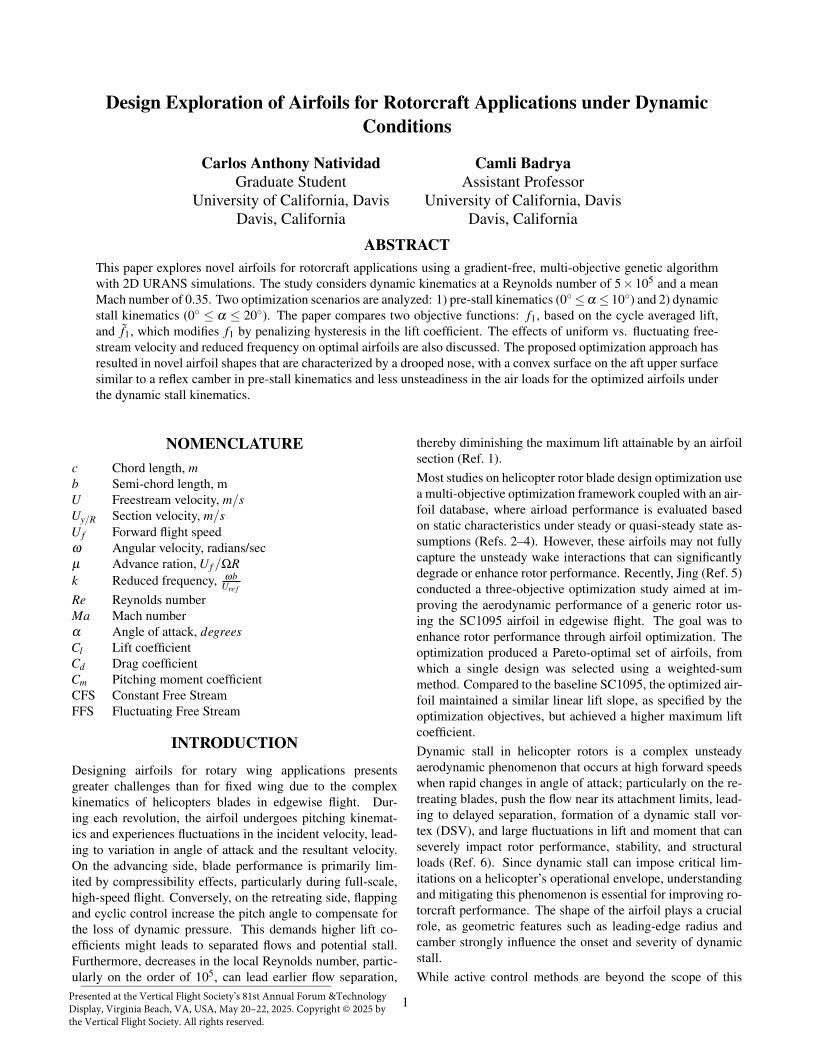

Did you attend Forum 81? Click the preview below to access the full paper.

The full paper is also available for purchase at the Vertical Flight Society Online Library and Store.
