Flight Testing of Explicit Model-Following Trajectory Control System for Lift-Plus-Cruise and Tilt-Wing Configurations

Abstract:
The ongoing development of numerous novel vertical takeoff and landing configurations necessitates flight control system design that enables the Simplified Vehicle Operations paradigm. This paper shows flight test results for one subscale lift-plus-cruise and one tilt-wing configuration employing such a flight control system architecture. Pilot inceptor inputs are used to synthesize trajectory commands that are processed by a full-envelope trajectory control system that generates propulsor thrust commands, a wing angle command, and attitude and rate commands for linear quadratic integral and explicit model-following inner-loop control systems. Commonalities and differences in the flight control implementation for the two configurations are highlighted. Results are shown for both configurations subject in manually piloted flights. The flight test results demonstrate that the flight control system designs allow a minimally trained operator to operate the two flight test vehicles safely and proficiently.

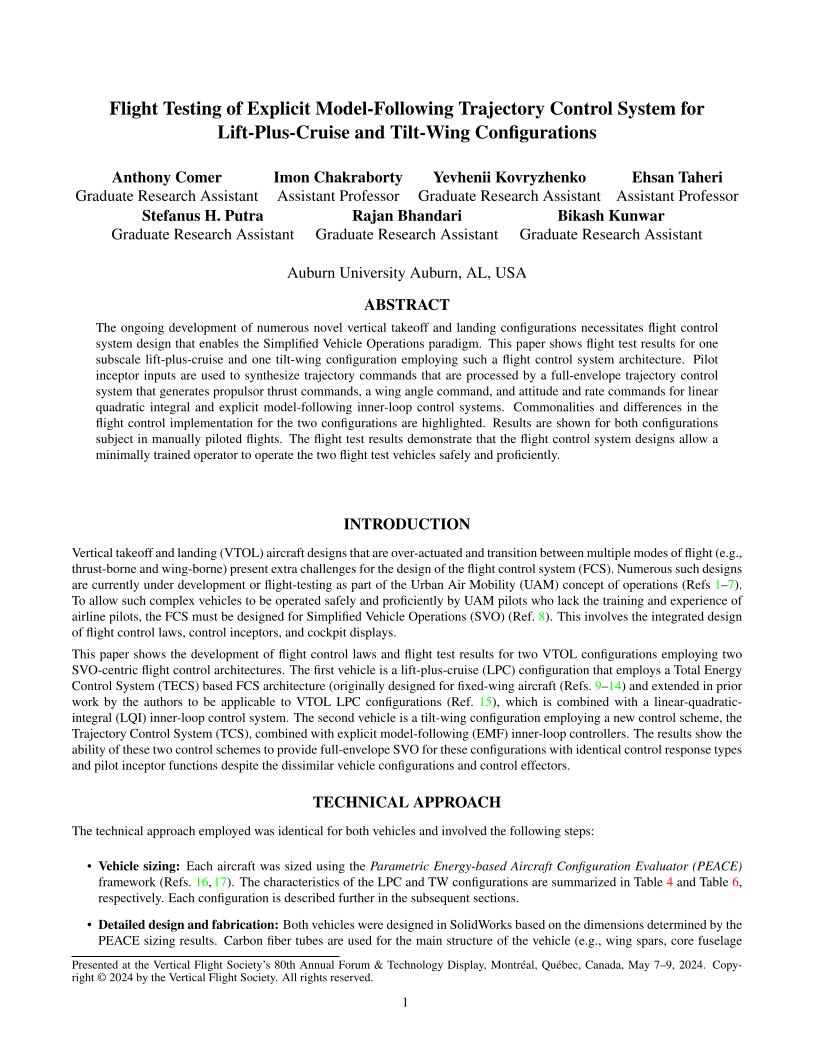

Did you attend Forum 80? Click the preview below to access the full paper.

The full paper is also available for purchase at the Vertical Flight Society Online Library and Store.
