The Inter-2-Blade Lead-Lag Damper Concept

Abstract:
A novel concept of inter-blade damper rotor hub arrangement is proposed. Inter-blade lead-lag dampers currently used in some helicopters connect adjacent blades; their damping effect is associated with the relative lead-lag motion of the blades. In the proposed arrangement, called 'inter-2-blade,' dampers connect non-adjacent blades. The proposed arrangement improves ground-resonance stability and reduces harmonic components of the loads in the dampers. The Deutsch criterion for the sizing of lead-lag dampers is generalized to the inter-blade and inter-2-blade arrangements.

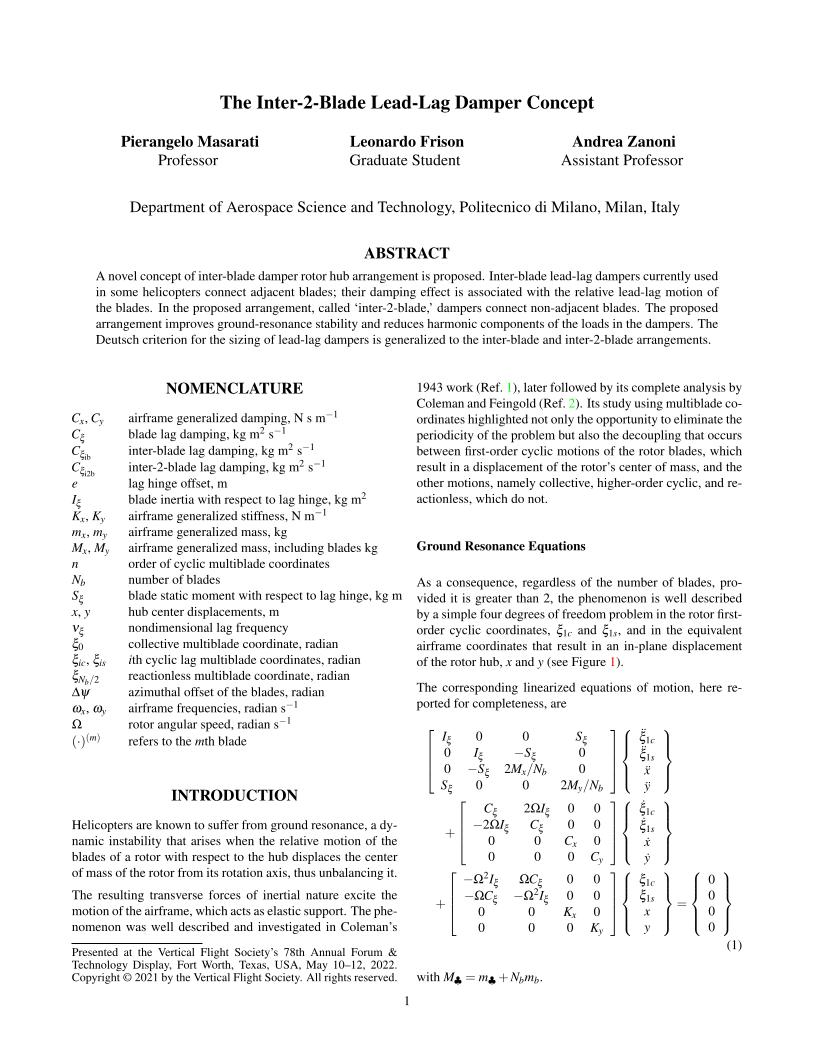

Did you attend Forum 78? Click the preview below to access the full paper.

The full paper is also available for purchase at the Vertical Flight Society Online Library and Store.
